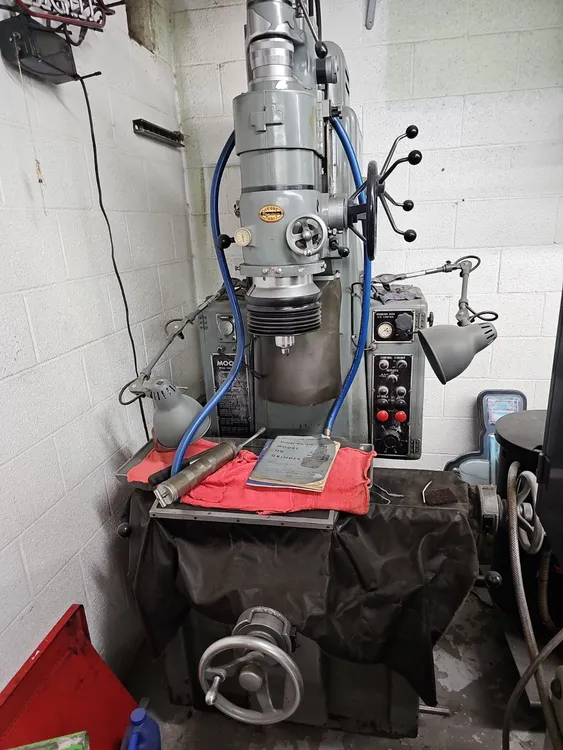

Moore #3 G18 Jig Grinder

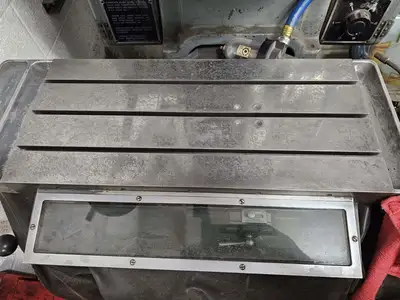

Table Size................................11" x 24"
Longitudinal Table Travel.................18"
Cross Travel..............................11"
Main Spindle Vertical Travel..............3-5/8"
Distance, Table to Wheel Collet...........18" max, 2" min
Distance, Spindle to Column Ways..........10"
Distance, Spindel to Column Below Ways....13.5"
Spindle Speeds, infinite from.............40 to 250 RPM
Spindle Feeds, Air Hydraulic (Infinite)...2-120 Cycles PM
Grinding Wheel Speed Range................9,000-60,000 RPM
Dimensions................................80" FB x 65" LR x 102" H
Weight, Approx............................3800 Lbs.
