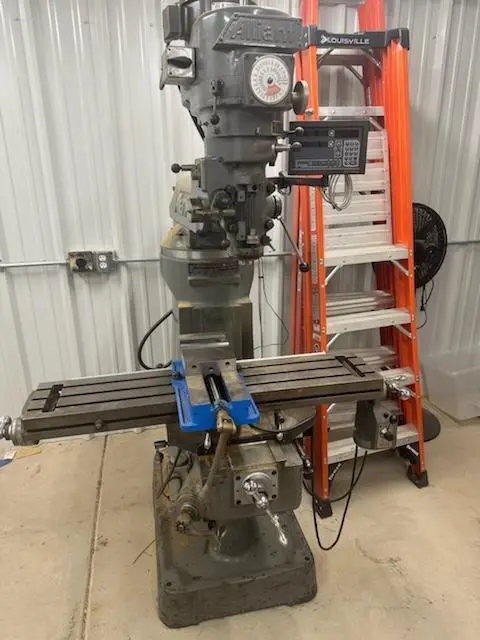

Alliant 42VC Vertical Milling Machine

Table Working Surface...............9" x 42"
T-Slot Number, Size.................3, 5/8"
Table Travel X-Axis.................30"
Saddle Travel Y-Axis................12"
Ram Travel..........................12"
Quill Travel........................5"
Knee Travel.........................16"
Spindle to Column (min-max).........6-3/4" – 18-1/2"
Spindle to Nose to Table............2-1/8" – 18"
Spindle Motor.......................2 HP
Wiring Voltage......................220V, 3Ph, 60Hz
Taper...............................R-8
Speed (vari speed)..................60-4,500 RPM
Quill Feed (IPR)....................0.0015", 0.003", 0.006"
Head Swivel.........................360 Degree
Head Tilt; right-to-left............45 degree
Head Tilt; up-and-down..............45 degree
Approx. Shipping Dimensions.........68" L x 68" W x 89" H
Weight..............................2,400 LBS
