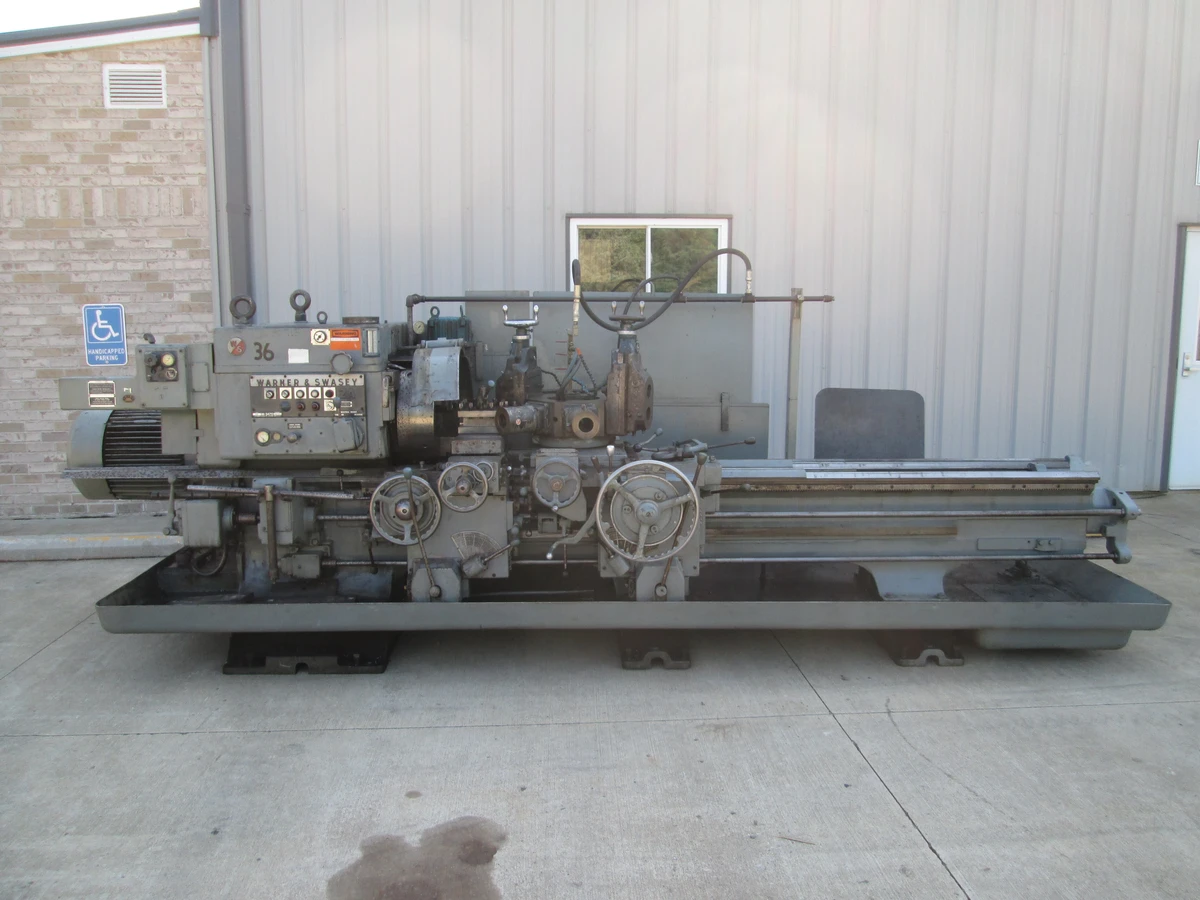

Warner & Swasey #2A M-3470 with 4' Extended Bed

SWING OVER WAYS .................... 21-1/2"
SWING OVER CROSS SLIDE ............. 16-1/4"
TURRET NOSE TO SPINDLE FACE ........ 94"
SPINDLE SPEEDS ..................... (32) 16 TO 1117 RPM
LONGITUDINAL & TURRET FEEDS ........ (16) .004 TO .149 IPR
CROSS FEEDS ........................ (16) .002 TO .149 IPR
DIAMETER OF SPINDLE HOLE ........... 4-3/4"
CHUCK .............................. 18" 3-JAW
RAPID TRAVERSE ..................... YES
POWER CHUCK WRENCH ................. YES
REVERSE FEED TO TURRET ............. YES
COOLANT WITH FULL LENGTH CHIP PAN .. YES
ADJUSTABLE BORING HOLDERS .......... 5
HORSEPOWER MAIN MOTOR .............. 40
