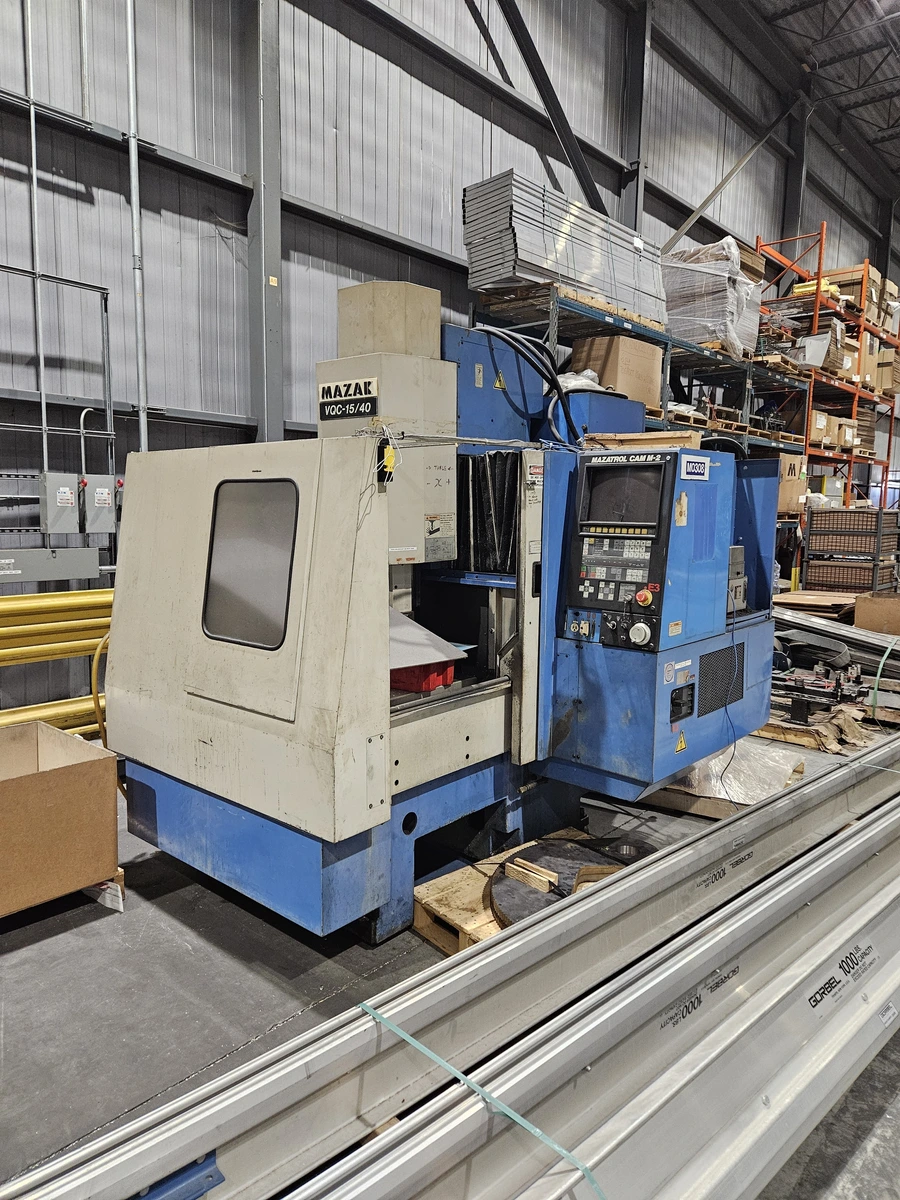

Mazak VQC-15/40 Vertical Machining Center

Table Size.......................35.43" X 16.14"
Max Table Load...................660 LBS
Max Part Size....................15.75" x 25"
Spindle Center to Column.........10.62"
Spindle Nose to Table Surface....3.93" - 18.93"
Floor to Table Surface...........25.59"
X Axis Travel....................22"
Y Axis Travel....................16.4"
Z Axis Travel....................15"
Spindle Taper....................CAT-40
Spindle Speed....................6,000 RPM
Spindle Motor....................20 HP
Tool Changer Capacity............16 ATC
Machine Dimensions...............75.9" x 92.3" x 103.5"
Machine Weight...................10,000 LBS
