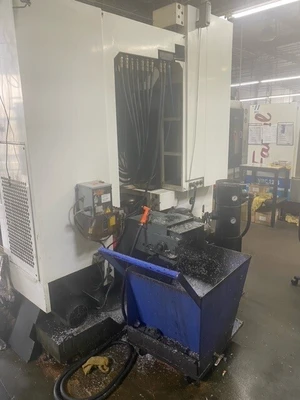

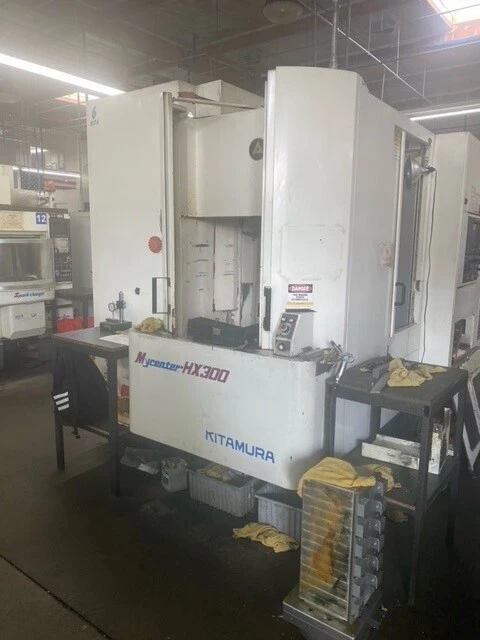

Kitamura Mycenter HX-300 Horizontal Machining Center

PALLET SIZE...........................11.8" X 11.8"
MAX PART WEIGHT.......................551 LBS
SPINDLE CENTER TO PALLET TOP..........1.6" - 21.7"
SPINDLE NOSE TO PALLET CENTER.........3.9" - 19.6"
PALLET INDEXING.......................0.001"
X-AXIS TRAVEL.........................20.1"
Y-AXIS TRAVEL.........................20.1"
Z-AXIS TRAVEL.........................15.7"
SPINDLE POWER.........................15 HP
SPINDLE TAPER.........................CAT-40
SPINDLE SPEED.........................10,000 RPM
RAPID TRAVERSE RATE X, Y & Z AXIS.....1417 IPM
CUTTING FEED RATE.....................0.1 - 393 IPM
NUMBER OF TOOLS.......................40 ATC
TOOL CHANGE TIME......................1.2 SECONDS
MAXIMUM TOOL WEIGHT...................22 LBS
DIMENSIONS (APPROXIMATE)..............86" X 150" X 101" H
WEIGHT (APPROXIMATE)..................16,000 LBS
