Accurl USA GeniusPro 13’ x 245T
Press Brakes

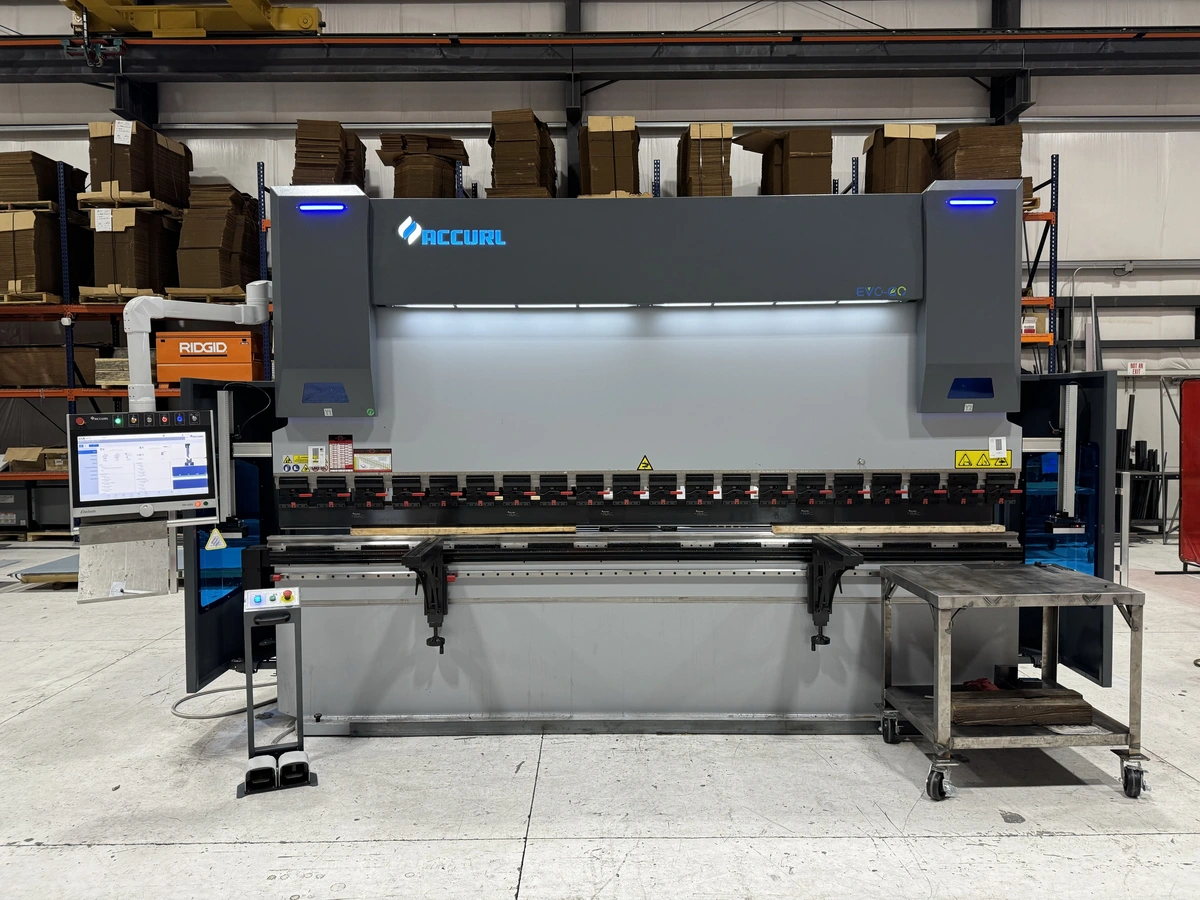

2023 Accurl USA GeniusPro 13’ x 245T CNC Press Brake with Delem DA-66S Control, 245 Ton x 13', 7.87" Stroke, 6-Axis Backgauge with Crowning, Upper Clamping, Universal Die Bed.
| Tonnage | 245 T |
| Type | HYD |
| Overall Length | 157' |
| Between Housings | 129' |
| Stroke | 7.87" |
| # Axis | 6 |
| Control | CNC (Delem DA-66S) |
| Weight | 31,000 LBS |
Capacity.....................245 Tons
Bed Length...................157"
Backgauge Travel.............39"
Daylight.....................18.5"
Stroke.......................7.87"
Throat Depth.................16.1"
Distance Between Frames......129"
Motor........................25 HP Evo-Go Hybrid Servo Hydraulic (Very Quiet and Fast)
Power........................220V /3PH
Weight.......................31,000 LBS
Delem DA-66S CNC Control
6-Axis Backgauge with Crowning
Upper Clamping: Quick Clamps with Vertical Load/ Unload European fitting
Die Bed: Universal (Euro or American)
Tooling Included: Upper segmented punch, lower 4 way V die
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
