Mazak VCN-510C-II
Have one to sell?
ConditionUsed
1 available

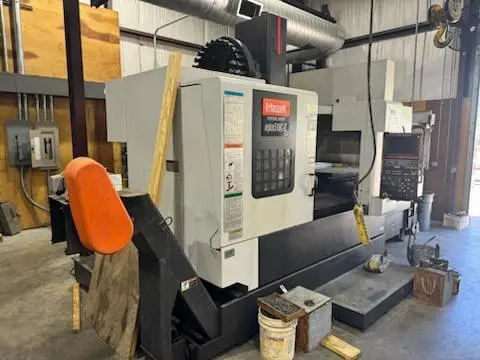

2007 Mazak VCN-510C-II 2-Pallet Vertical Machining Center with Matrix Nexus Control, 12,000 RPM, CAT-40 Spindle, Through Spindle Coolant, Mazak 4th Axis Rotary Table, Radio Probing, 30 ATC, New Mazak Installed Spindle, and Chip Conveyor.
Table Size..............................51.18" x 21.65"
Maximum Table Load......................2,646 LBS
Distance Spindle Nose to Table Top......5.9" - 25.98"
X-Axis Travel...........................41.3"
Y-Axis Travel...........................20"
Z-Axis Travel...........................20"
Spindle Motor...........................25 HP
Spindle Taper...........................CAT-40
Spindle Speed...........................12,000 RPM
Number of Tool Positions................30 Station Tool Changer
Maximum Tool Dia. / Length / Weight.....4.92" / 13.8" / 17 lbs.
Tool Change Time Tool to Tool...........1.3 seconds
Rapid Traverse Rates....................1,417 IPM
Machine Dimensions......................240" x 144" x 122"
Machine Weight..........................14,845 LBS
Matrix Nexus CNC Control
2-Pallet Shuttle Station
12,000 RPM, CAT-40 Spindle
Through Spindle Coolant
4th Axis Drive & Wiring
Mazak Rotary Table with 10" Chuck
Probe
30 Station Side Mount ATC
Chip Conveyor
New Mazak Installed Spindle
Radio Probe Upgraded from Line of Sight
New Radial Joint Coupling
New Hydraulic Unit
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
