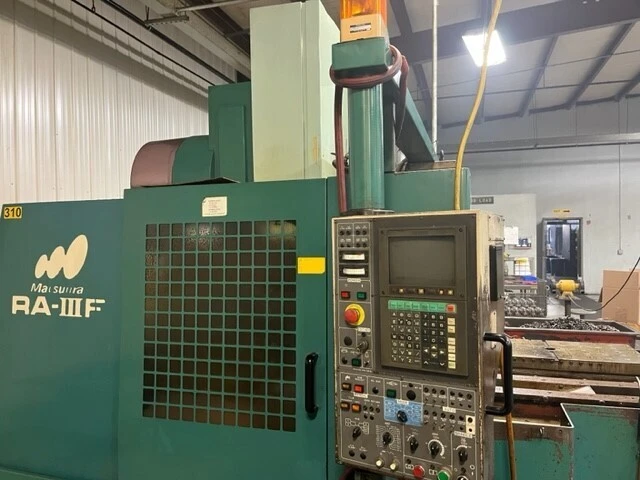

1996 Matsuura RA-IIIF Vertical Machining Center with Automatic Pallet Changer
| X | 31.49" |
| Y | 17.32" |
| Z | 19.09" |
| Power | 20 hp |
| RPM | 8,000 RPM |
| # ATC | 30 |
| Taper | 40 |
| Table-W | 16.5" |
| Table-L | 31.5" |
| # Axis | 3 |
| Control | CNC (YASNAC I80) |
| Weight | 15,000 LBS |
PALLET WORKING SURFACE...................31.5" X 16.5"
PALLET LOADING CAPACITY..................660 LBS
PALLET SURFACE TO SPINDLE END............5.9" – 25"
PALLET CENTER TO COLUMN GUIDEWAY.........9.84" - 27.16"
SPINDLE CENTER TO COLUMN GUIDEWAY........18.50"
X-AXIS TRAVEL............................31.49"
Y-AXIS TRAVEL............................17.32"
Z-AXIS TRAVEL............................19.09"
SPINDLE MOTOR............................20 HP
SPINDLE TAPER............................CAT-40
SPINDLE SPEED............................8,000 RPM
RAPID TRAVERSE RATE (X/Y/Z)..............944/944/708 IPM
FEEDRATE (X/Y/Z).........................0.1 – 393.7 IPM
NUMBER OF TOOLS..........................30
WEIGHT...................................15,000 LBS
YASNAC i80 CONTROL WITH REMOTE MPG
2-STATION PALLET CHANGER
SPINDLE OIL CHILLER
CHIP CONVEYOR
BOXED WAYS
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
