Farrel Betts 124" x 55' CNC Lathe
Have one to sell?
ConditionUsed
1 available

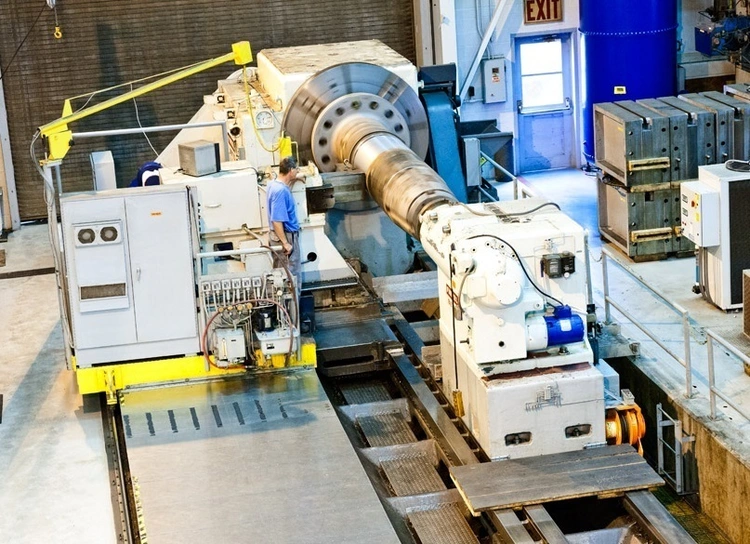

Farrel Betts 124" CNC Lathe with Siemens 840D SL Control, 55' Between Centers, 110" Swing over Carriage, 100 Ton Weight Capacity.
Max. Swing over Bed Ways.........124"
Max. Swing over Carriage.........110"
Max. Length between Centers......55'
Max. Weight between Centers......100 Tons
X-Axis Travel (Cross Slide)......30.5"
Z-Axis Travel (Carriage Travel...631.5"
Faceplate Diameter...............72"
Main Spindle Motor...............125 HP
Spindle Speeds (4)...............0.5 - 128 RPM
A-Axis Tool Slide................23.5" Right Ram (Positioning Only)
C-Axis Tool Slide................21.0" Left Ram (Positioning Only)
Feed Rates.......................0.001 - 20 IPM
Rapid Traverse Rates.............200 IPM
Tailstock Quill Stroke...........15"
Quill Diameter...................18"
Distance between Ram Faces.......22.937"
Siemens 840DSL CNC Control (2016)
19" Control Panel
OP12 12" Display with Membrane Keys
Thin Client Unit
USB Drive
HMI Operate Machine Interface Software
Sinumerik HT2 Hand Held Electronic Hand Wheel
Discrete I/O Interface Hardware
S120 Servo Drive System
Siemens 6RA80 DC Spindle Drive
New Main Panel & Components
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
