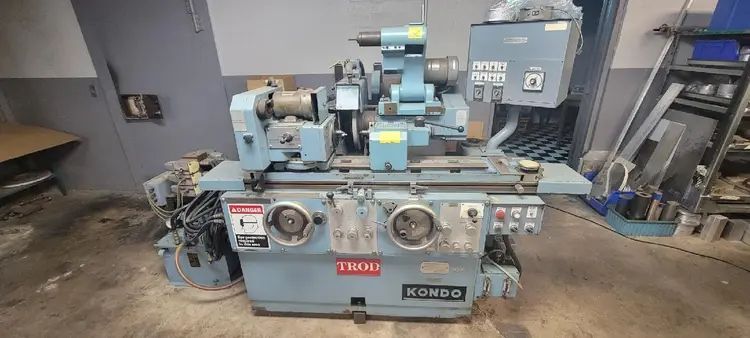

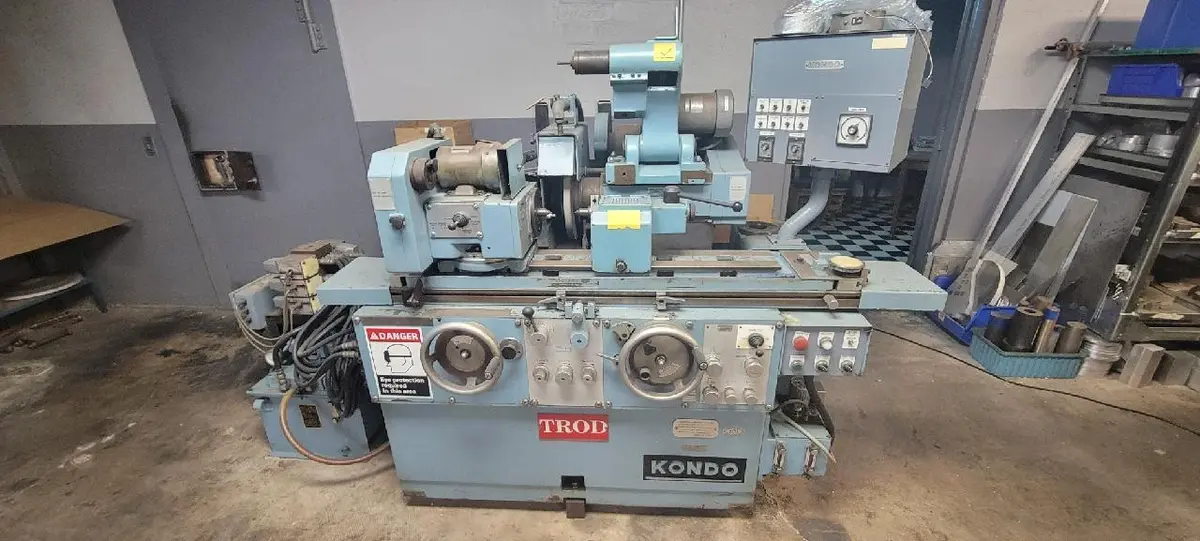

Kondo Hi-Gloss-450-H-TS OD/ID Cylindrical Grinder

MAXIMUM SWING OVER TABLE........................ 9.8"
DISTANCE BETWEEN CENTERS........................ 18"
MAX. TABLE STROKE .............................. 23"
STROKE PER ONE TURN OF HANDWHEEL ............... 0.8"
TRAVERSE SPEED ................................. 0.4" TO 80" IPM
SWIVEL TABLE GRADUATED (DEG. INCLUDED ANGLE).... 4 DEG. CW/8 DEG. CCW
GRINDING WHEEL ................................. 16" DIA. x 1" TO 3"W x 8"
BORE SWIVEL RANGE .............................. +/- 30 DEGREES
(2) GRINDING WHEEL SPINDLE SPEEDS .............. 1500/2000 RPM
INFEED HANDWHEEL, 1 GRAD. = .................... 0.0001"
FINE FEED FOR WHEELHEAD, 1 GRAD. = ............. 0.00005"
ONE REV. OF HANDWHEEL REPRESENTS .............. 0.1"
AUTOMATIC INFEED @ TABLE REVERSAL, ON DIA....... 0.0005" TO .002"
PLUNGE GRINDING, FEED RATE RANGE ............... 0.0005" TO .070"MIN./MAX.
PLUNGE CUT DEPTH ............................... 0.004" TO .16"
MOVEMENT OF UPPER SLIDE ADJUSTMENT ............. 6.3"
RAPID HYDRAULIC INFEED STROKE................... 1"
TRAVERSE ON FEED SCREW ......................... 3.9"
WORKHEAD SPINDLE SPEEDS (4) .................... 65 TO 355 RPM
WORKHEAD TAPER.................................. #3 MT
DIA. OF HOLE, WORKHEAD SPINDLE.................. 0.8"
WORKHEAD SWIVEL RANGE........................... +/- 90 DEGREES
TAILSTOCK TAPER................................. #3 MT
TAILSTOCK STROKE ............................... 1"
ELECTRICS ...................................... 230/460V
REQUIRED FLOOR SPACE ........................... 96" X 57" X 70"H
APPROX. WEIGHT ................................. 5,500 LBS.
