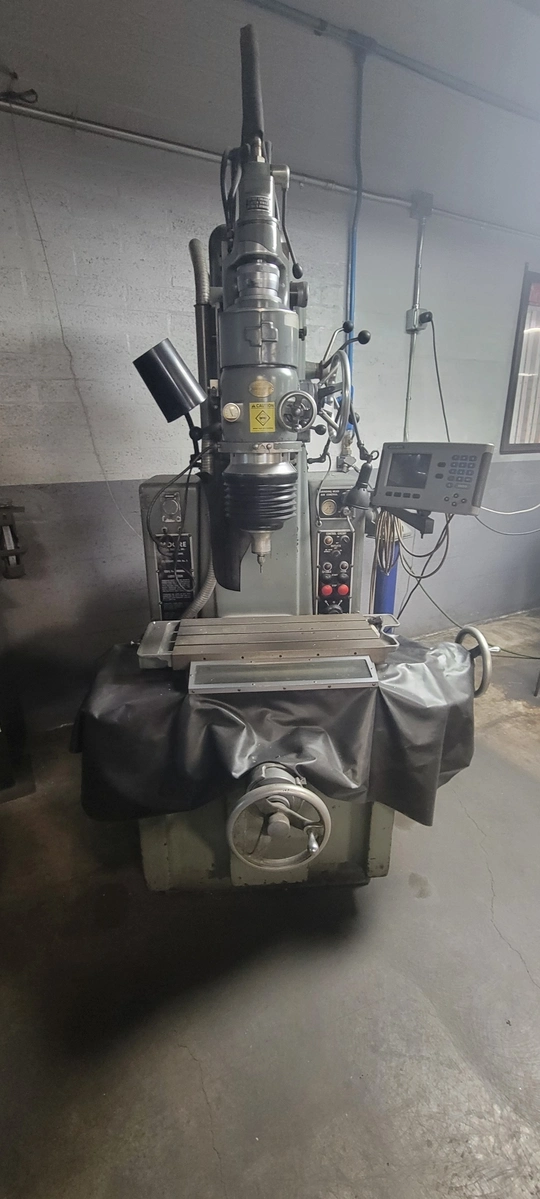

Moore #3 Jig Grinder
Jig GrindersMoore #3 Jig Grinder
Table Size-W | 11" |
Table Size-L | 24" |
Dimensions | 80" FB x 65" LR x 102" H |
Weight | 3,800 LBS |
Table Size................................11" x 24"
Longitudinal Table Travel.................18"
Cross Travel..............................11"
Distance, Table to Wheel Collet...........18" max, 2" min
Distance, Spindle to Column Ways..........10"
Distance, Spindel to Column Below Ways....13.5"
Spindle Speeds, infinite from.............40 to 250 RPM
Spindle Feeds from........................4 to 240 SPM
Main Spindle Vertical Travel..............3-5/8"
Dimensions................................80" FB x 65" LR x 102" H
Weight, Approx............................3800 Lbs.
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
