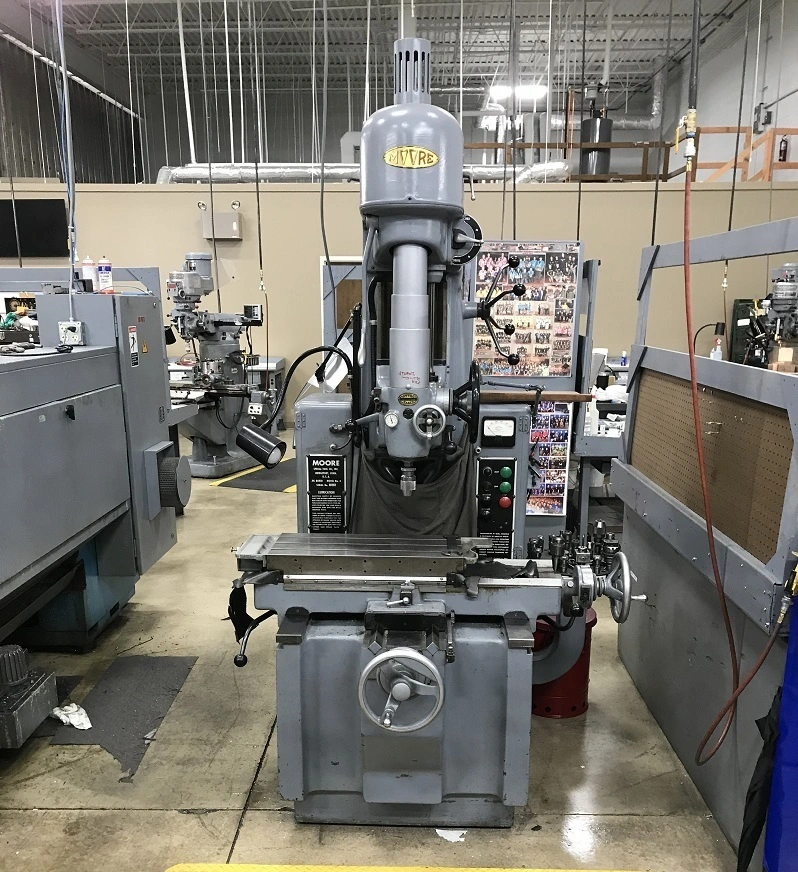

Moore #3 Jig Borer

Table Size..............................11" x 24"
Longitudinal Table Travel...............18"
Cross Table Travel......................11"
Max Spindle to Table....................3-7/8" X 20-13/16"
Spindle Housing Travel..................11-15/16"
Spindle Quill Travel....................5"
Spindle Center to Column Ways...........10"
Spindle Center to Column Throat.........13.75"
Spindle Speed...........................60 – 2250 RPM
Spindle Motor...........................2 HP
Spindle Feed (3)........................0.00075" – 0.0015" - 0.003" /Rev
Machine Floor Space.....................72" x 84"
Machine Weight..........................3,860 LBS

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS**
