Kitamura Mycenter 2XiF Sparkchanger 2-Pallet Vertical Machining Center

Table Size.................22" x 14"
Max. Weight on Table.......220 LBS
Spindle Nose to Table......2.3" – 20.6"
Column to Table Center.....9.9" – 23.9"
X-Axis Travel..............20.1"
Y-Axis Travel..............14"
Z-Axis Travel..............18.1"
Spindle Power..............15 HP
Spindle Taper..............CAT-40
Speed Range................15,000 RPM
Rapid X,Y & Z..............1969/1417 IPM
Cutting Feedrate...........1417 IPM

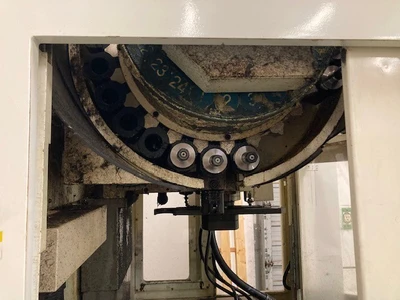

Number of Tools............24 ATC
Max Tool Weight............17.6 lbs
Max Tool Length............11.8"
Max Tool Dia...............3.1"
Tool Change Time...........1.7 Second
Overall Dimensions.........110 x 90 x 110" High
Weight.....................11,500 LBS
