Kitamura Mycenter Zero Sparkchanger
Have one to sell?
ConditionUsed
1 available

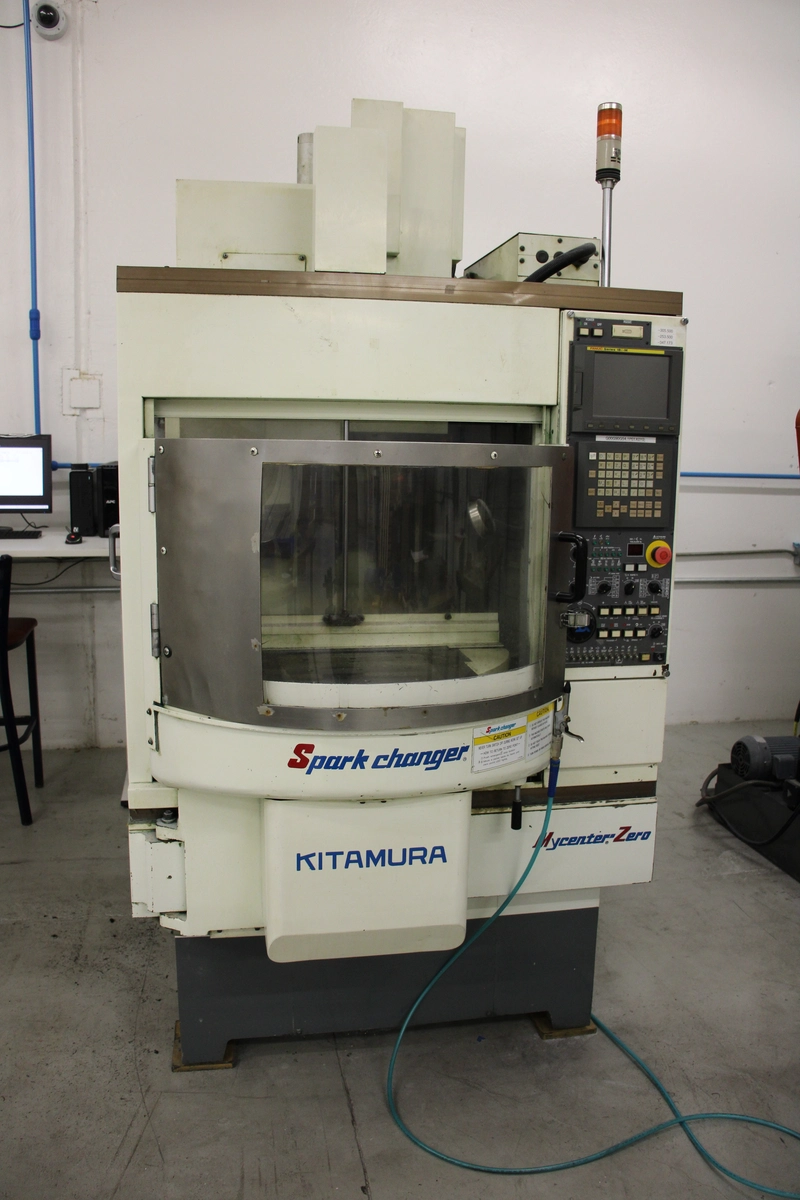

2001 Kitamura Mycenter Zero Sparkchanger with Fanuc 18i-M Control, 15,000 RPM, 30 Taper Spindle, 2 Station Pallet Changer, Rigid Tapping, and High Speed Machining
TABLE SIZE.........................12" X 18.1"
TABLE LOAD CAPACITY................132.3 LBS.
X-AXIS TRAVEL......................12"
Y-AXIS TRAVEL......................10"
Z-AXIS TRAVEL......................12"
SPINDLE TAPER......................30
SPINDLE SPEED......................15,000 RPM
RAPID TRAVERSE: (X AND Y-AXIS).....1889 IPM
RAPID TRAVERSE Z-AXIS..............1417 IPM
MAXIMUM TOOL DIAMETER & LENGTH.....2.0" X 7.9"
TOOL TO TOOL.......................0.8 SECONDS
CHIP TO CHIP.......................2.0 SECONDS
MACHINE DIMENSIONS.................83" x 57" x 95"
MACHINE WEIGHT.....................6,500 LBS

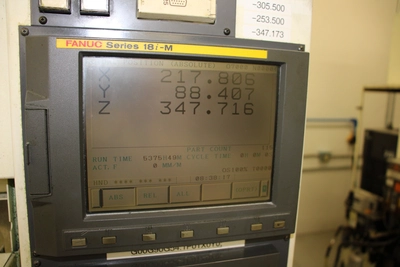

Fanuc 18i-M CNC Control
15,000 RPM
Dual Pallet SparkChanger
25 Misc. Tool Holders
Rigid Tap
High Speed Machining
All Available Manuals
