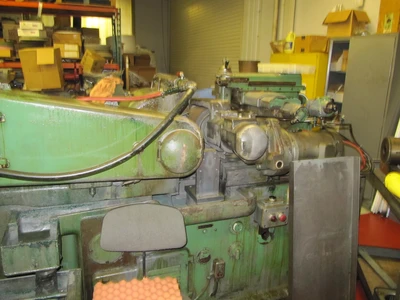

Lidkoping 2C Centerless Grinder

SPECIFICATIONS:
Max Opening Between New Wheels...........................2.4"
Recommended Working Range................................0.004" - 1"
Max. Diameter for Light Work.............................2.4"
Recommended Working Range for Bar Grinding...............0.004" - 0.5"
Max. Length on Infeed Grinding...........................4.9"
Main Motor...............................................7.5 - 10 HP
Machine Weight...........................................6,400 LBS

GRINDING WHEEL:
Diameter of New Grinding Wheel...........................12"
Diameter to which Wheel Can be Worn Down.................7"
Width for Through Feed Grinding..........................4"
Max. Width for Infeed Grinding...........................5"
Bore.....................................................5"
Peripheral Speed.........................................ft/min 5,500 - 9,000

REGULATING WHEEL:
Diameter of New Wheel....................................10"
Diameter to which Wheel Can be Worn Down.................7"
Width fir Through Feed Grinding..........................4"
Max. Width for Infeed Grinding...........................4.7"
Bore.....................................................5"
Speed (Stepless Variation)...............................r/min 0-205

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
