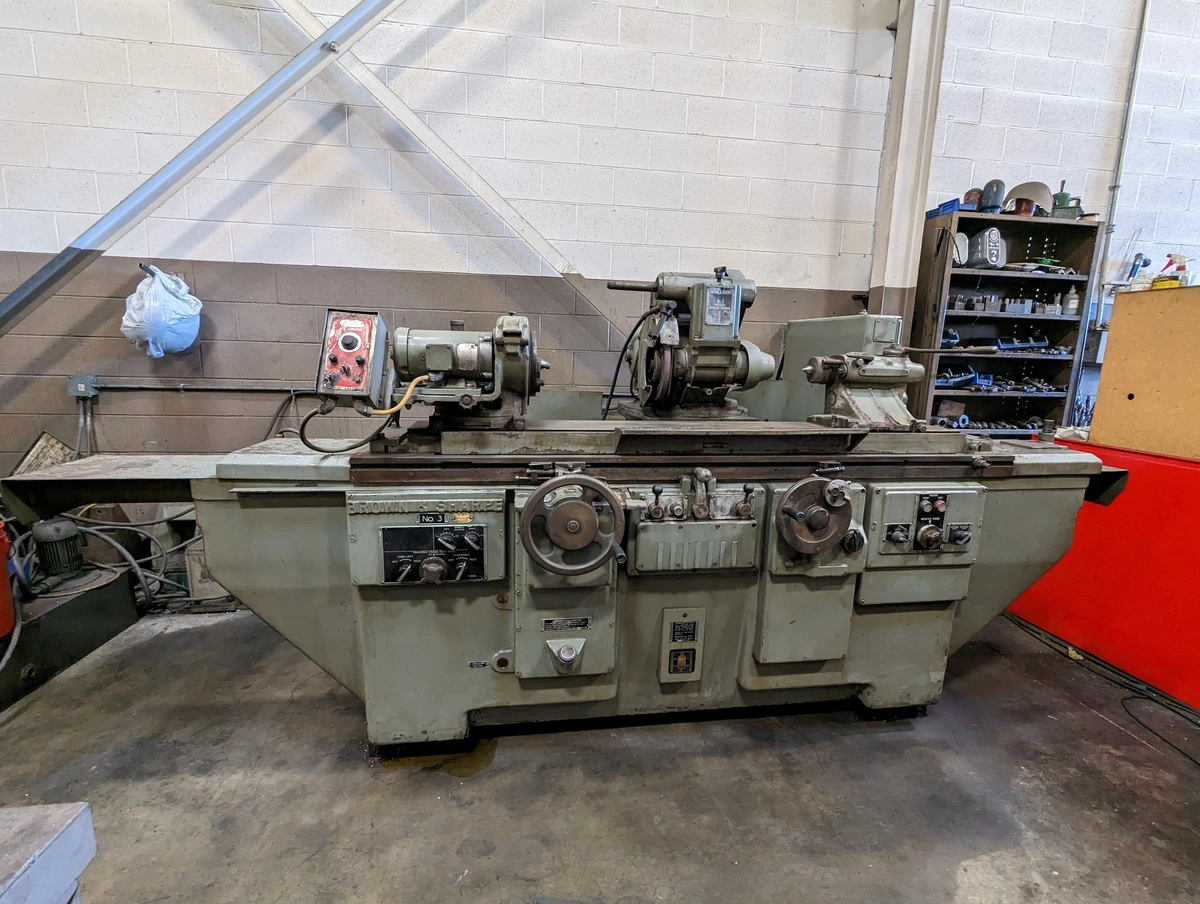

Brown & Sharpe #3 Universal Grinding Machine
Have one to sell?
ConditionUsed
1 available
Brown & Sharpe #3 Universal Cylindrical Grinder - 14" x 40" with Lots of Tooling & Accessories.
Nominal Swing...............................14"
Distance Between Centers, Nominal...........40"
Distance Between Centers Max................43-3/4"
Wheelhead Motor.............................3 HP
Wheelhead Spindle Speeds (3)................2100, 2400 & 2800 RPM
Wheel Size..................................14" x 1-1/2" x 5"
Wheelhead Swivels Left and Right of Center..90 DEG.
Wheel Spindle Swivels.......................90 DEG.
Headstock Motor.............................1/2 HP
headstock Swivels...........................180 DEG.
Infinitely Variable Spindle Speeds..........25 – 500 RPM
Spindle Nose................................A2-6
B & S Taper Hole............................No. 12
Tailstock Spindle Taper.....................No. 10 B & S
Tailstock Spindle Travel....................1"
Electrics...................................550V/3PH/60H
Approx. Dimensions (l x w x h)..............153" x 79" x 61
Approx. Weight..............................9,200 LBS
Lots of Tooling & Accessories Included
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Brown & Sharpe #3 Universal Cylindrical Grinder - 14" x 40" with Lots of Tooling & Accessories.
Imperial
| Swing | 14" |
| Centers | 0" |
| Power | 3 hp |
| Workhead Power | 0.2 hp |
| Workhead Speed | 500 RPM |
| Grinding Wheel Dia. | 14" |
| Max Weight Between Centers | 200 lb |
| Dimensions | 153" x 79" x 61" |
| Weight | 9,200 LBS |
Nominal Swing...............................14"
Distance Between Centers, Nominal...........40"
Distance Between Centers Max................43-3/4"
Wheelhead Motor.............................3 HP
Wheelhead Spindle Speeds (3)................2100, 2400 & 2800 RPM
Wheel Size..................................14" x 1-1/2" x 5"
Wheelhead Swivels Left and Right of Center..90 DEG.
Wheel Spindle Swivels.......................90 DEG.
Headstock Motor.............................1/2 HP
headstock Swivels...........................180 DEG.
Infinitely Variable Spindle Speeds..........25 – 500 RPM
Spindle Nose................................A2-6
B & S Taper Hole............................No. 12
Tailstock Spindle Taper.....................No. 10 B & S
Tailstock Spindle Travel....................1"
Electrics...................................550V/3PH/60H
Approx. Dimensions (l x w x h)..............153" x 79" x 61
Approx. Weight..............................9,200 LBS
Lots of Tooling & Accessories Included
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
