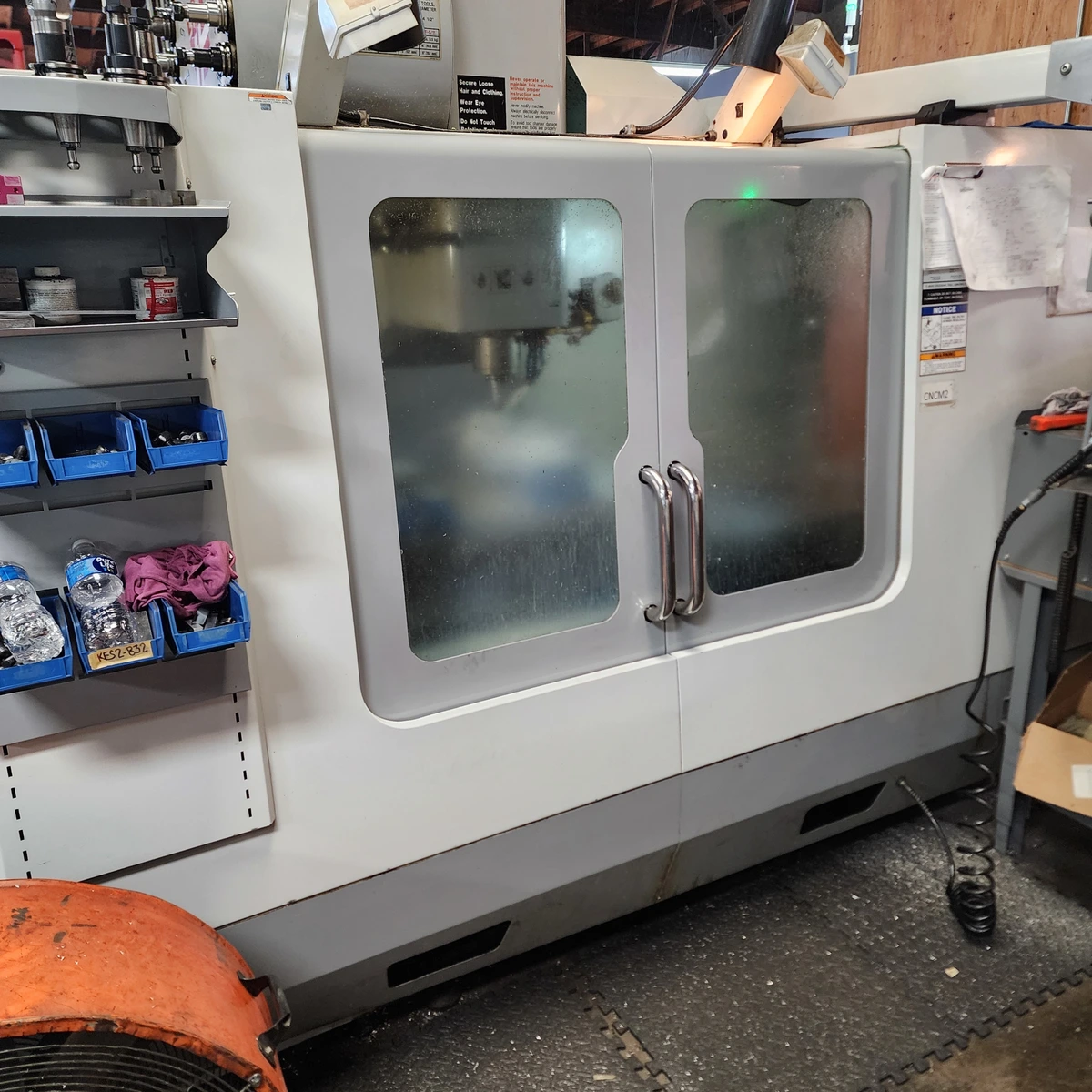

Haas VF-3B Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
2006 Haas VF-3B Vertical Machining Center with 7,500 RPM, 2-Speed Geared Spindle, Programmable Coolant, 4th Axis Drive & Wiring, 24 Station Side Mount ATC, High Intensity Lighting, Macros, Coordinate Rotation & Scaling, Quick Code, and more.
Table Size...................48" x 18"
Max Weight on Table..........3,500 LBS
Spindle Nose to Table........4" – 29"
X-Axis Travel................40"
Y-Axis Travel................20"
Z-Axis Travel................25"
Spindle Motor................30 HP 2-Speed Gear Drive
Spindle Taper................CAT-40
Spindle Speed................7,500 RPM
Rapid Traverse Rates.........1000 IPM
Cutting Feed Rates...........630 IPM
Number of Tools..............24 ATC
Max Tool Weight..............12 LBS
Max Tool Diameter............3.6"
Max Tool Length..............11"
Tool Changing Time...........2.2 Seconds
Overall Dimensions...........120" x 96" x 100"
Weight.......................12,500 LBS
Haas CNC Control
2-Speed Gear Box
Remote Jog Handle
Floppy Drive
4th Axis Drive & Wiring
24 Station Side Mount ATC
Programmable Coolant
Coordinate Rotation & Scaling
Macros
Quick Code
Spindle Orientation
High Intensity Lighting
Chip Auger
HOURS:
Power on Time.......3,009
Cycle Start Time....1,652
Feed Cutting Time...1,525
