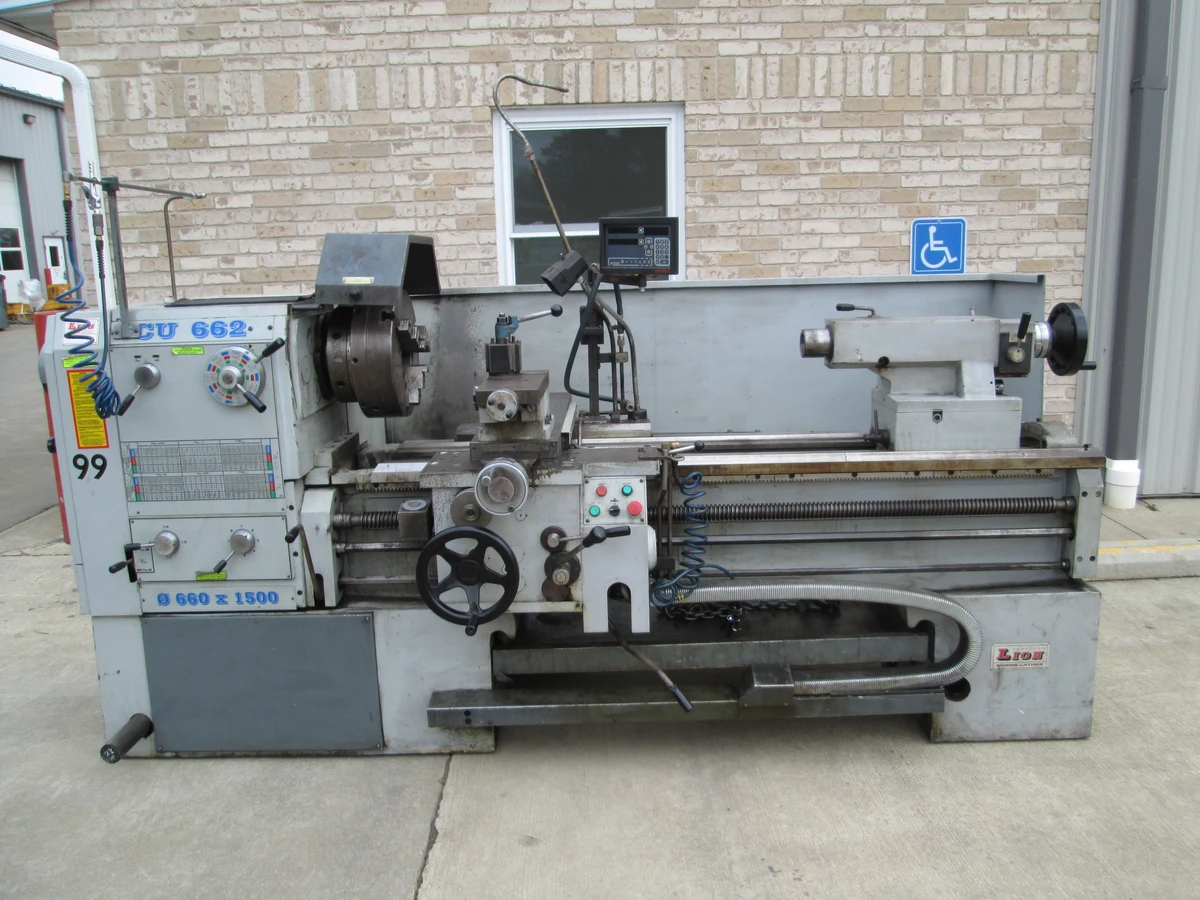

2012 Lion 25-CU Engine Lathe

Swing Over Bed.................25.5"
Swing Over Cross Slide.........17"
Swing In Gap...................33"
Distance Between Centers.......60"
Spindle Nose...................D1-11
Spindle Bore...................4-1/8"
Number Of Spindle Speeds.......16
Spindle Speed..................1600 RPM
Width Of Bed...................19"
Motor Power....................17.5 HP
Max. Traverse Of Cross Slide...15-1/4"
Max. Traverse Of Top Slide.....6-1/4"
Taper Turning Working Length...15-3/4"
Maximum Taper..................+/-10°
Tailstock Quill Diameter.......3-1/2"
Tailstock Quill Taper Bore.....6 MT
Maximum Quill Stroke...........7-3/4"
Lateral Stroke Of Tailstock....+/-3/8"
Machine Dimensions.............124" x 57" x 61"
Machine Weight.................8,700 LBS

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
