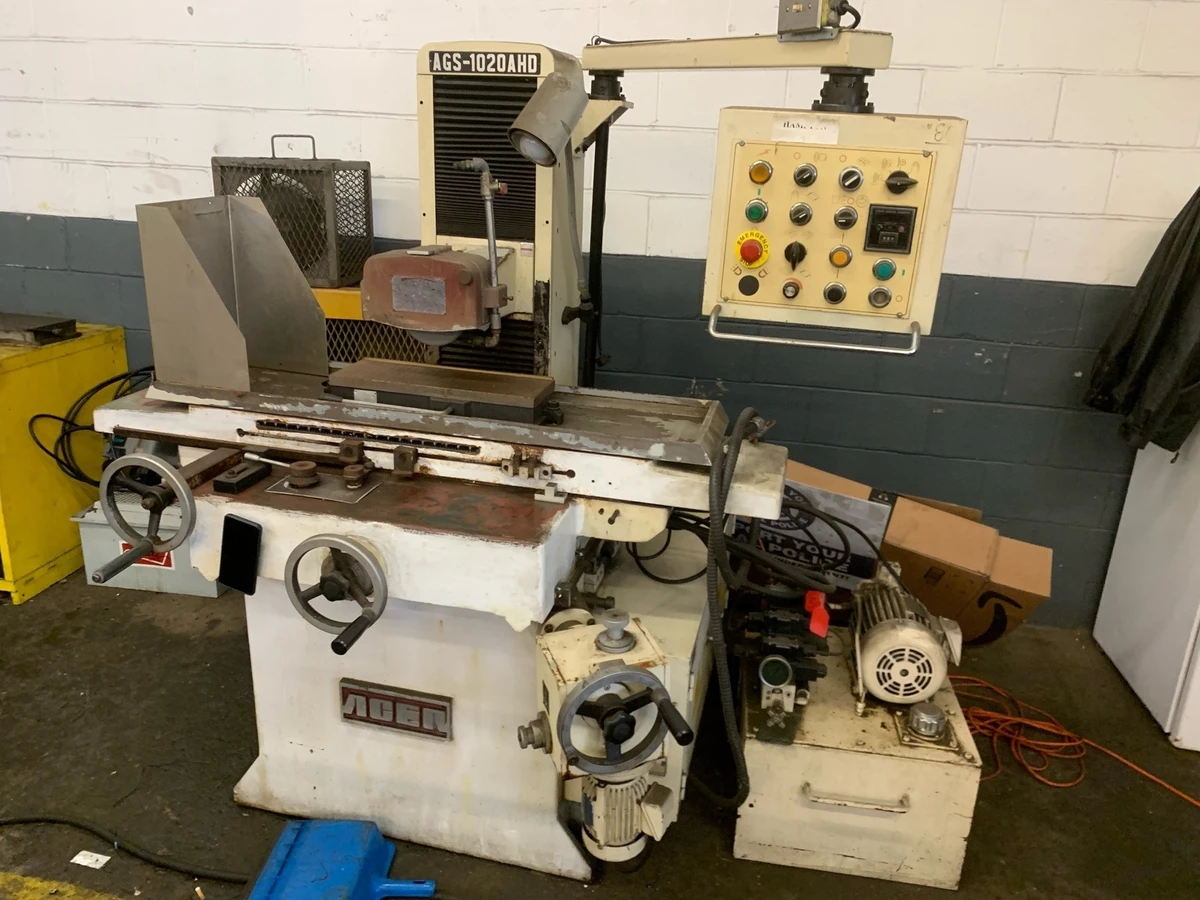

Acer AGS-1020AHD Horizontal Surface Grinder

Working surface of table (W x L)....................9" x 20"
Max. grinding (W x L)...............................10" x 20"
Max. table travel...................................20-1/2"
Max. crossfeed travel...............................11"
Distance between table surface and spindle center...19-1/4"
Variable table speed by oil cylinder................16-80 fpm
Automatic crossfeed carriage movement...............0-1
Downfeed handwheel dial Per graduation..............0.0005"
Per revolution......................................0.1"
Crossfeed handwheel dial Per graduation.............0.001"
Per revolution......................................0.2"
Auto downfeed micro adjustment dial Per graduation..0.0001"
Per revolution......................................0.01"
Longitudinal travel from-to.........................6-20
Crossfeed travel from-to............................0-10
Spindle motor.......................................2HP x 2P
Hydraulic pump motor................................2HP x 4P
Auto crossfeed motor................................1/5HP x 6HP
Grinding wheel (O.D. x T x I.D.)....................8" x 1-1/4" x 1/2"(3/4)
Rotation speed of spindle (horizontal)..............3,450 RPM/60HZ
Flow rate of coolant pump...........................40L/min
Max. load capacity in addition to magnetic chuck....700 lbs
Machine weight.......................................3,510 lbs

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
