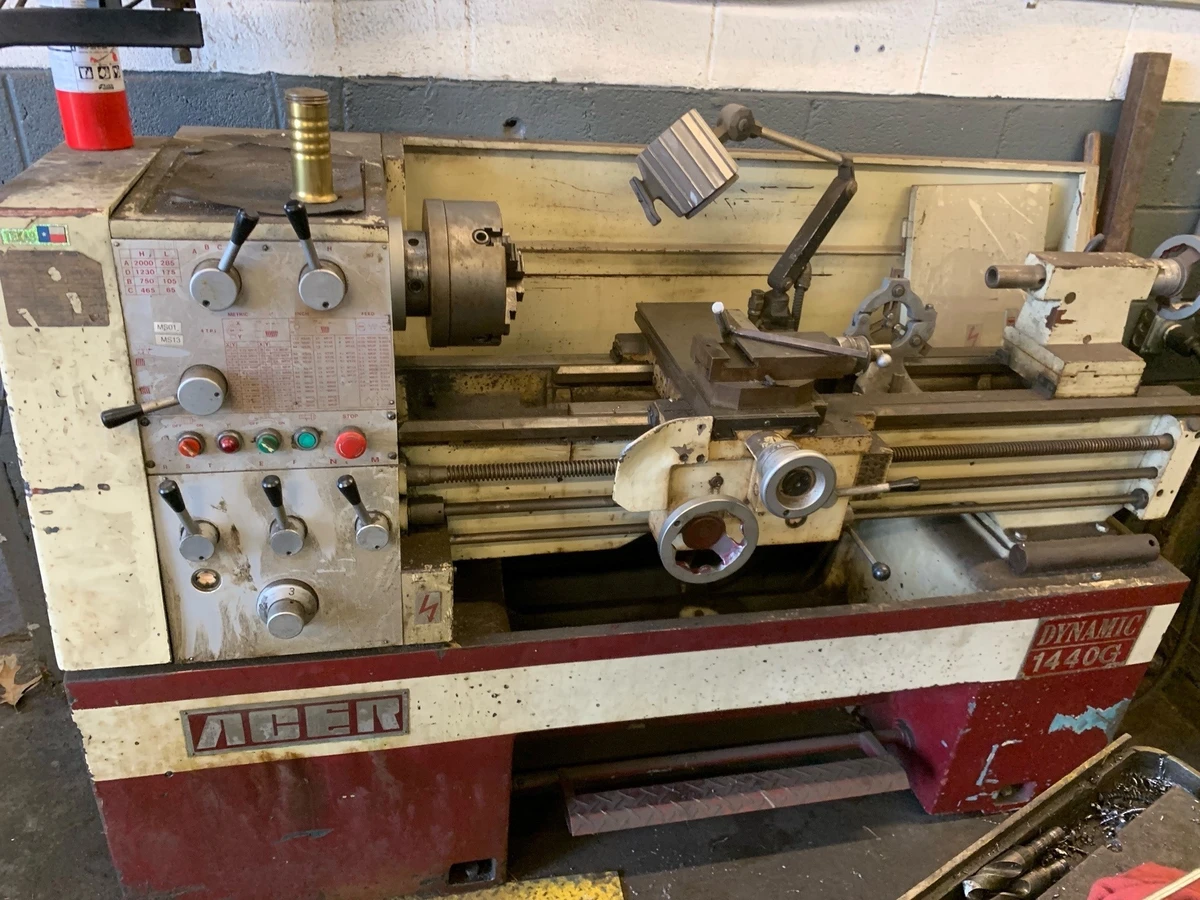

Acer Dynamic 1440G Engine Lathe

MAX SWING OVER WAYS..................14"
MAX SWING OVER CROSS SLIDE...........9"
SWING IN GAP.........................21"
MAX CENTER DISTANCE..................40"
DRIVE MOTOR..........................3 HP
HOLE THRU SPINDLE....................1-9/16"
SPINDLE MOUNT........................D1-4 OR A1-5
MAX CROSS SLIDE TRAVEL...............8-5/8"
MAX COMPOUND TRAVEL..................3-3/4"
SPINDLE SPEEDS.......................(8) 65 - 2,000 RPM
FEED RATES...........................0.002" - 0.04" IPR
TAILSTOCK QUILL TRAVEL...............4-1/4"
TAILSTOCK QUILL TAPER................MT-3
