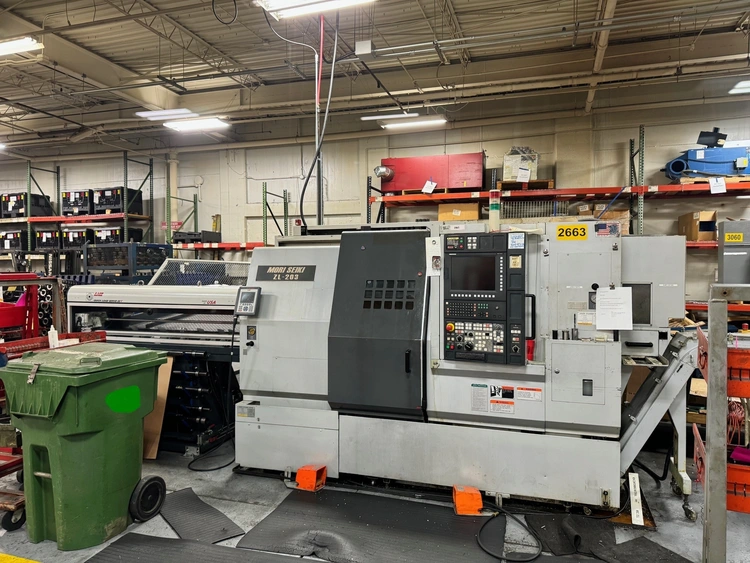

2005 Mori Seiki ZL-203S Dual Spindle, Dual Turret Turning Center Fanuc 18i-TB Control, 2.5" Bar Capacity, MAPPS II Programming, LNS Quick Load Servo S3T Barfeed, High Output Sub-Spindle, Workpiece Ejector, & More.
MAIN SPINDLE
Max. Swing over Bed....................26.8"
Max. Swing over Carriage...............20.1"
Max. Distance Between Spindle Noses....29.6"
Max. Turning Length....................16.6"
Maximum Turning Diameter Turret 1......15.35"
Maximum Turning Diameter Turret 2......11.5"
X1, X2-Axis Travels....................9.25", 6.9"
Z1, Z2-Axis Travels....................20.05", 19.7"
B-Axis Travel..........................19.9"
Through Spindle Hole Diameter..........2.87"
Max. Bar Capacity......................2.5"
Spindle Nose...........................A2-6
Spindle Motor..........................15 HP
Spindle Speed..........................4,000 RPM
COUNTER SPINDLE
Through Spindle Hole Diameter..........1.69"
Spindle Motor..........................15 HP
Spindle Speed..........................6000 RPM
Spindle Nose...........................A2-5
Upper Turret...........................12 Positions
Lower Turret...........................8 Positions
Rapid Travere Rates (X1&X2,Z1&Z2)......708, 944 IPM
Electrics..............................220V/3PH/60HZ
Machine Weight.........................12,650 LBS
Fanuc 18i-TB CNC Control
MAPPS II Programming
LNS Quick Load Servo S3T Barfeed
Collet Chucks on Main & Sub-Spindles
High Output Sub-Spindle 15 HP
Chuck Air Blow on Main & Sub-Spindle
Tool Presetter
Dual Turrets
Workpiece Ejector
Parts Catcher
3-Tier Signal Light
Auto Door
Chip Conveyor
Assorted Tooling
320M Part Program Storage
63 Stored Programs 50 MB User Memory
64 Tool Offset Pairs
Custom Macro
82 Custom Common Variables
Tool Life Management (Max. 64 Pairs)
Load Monitor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
