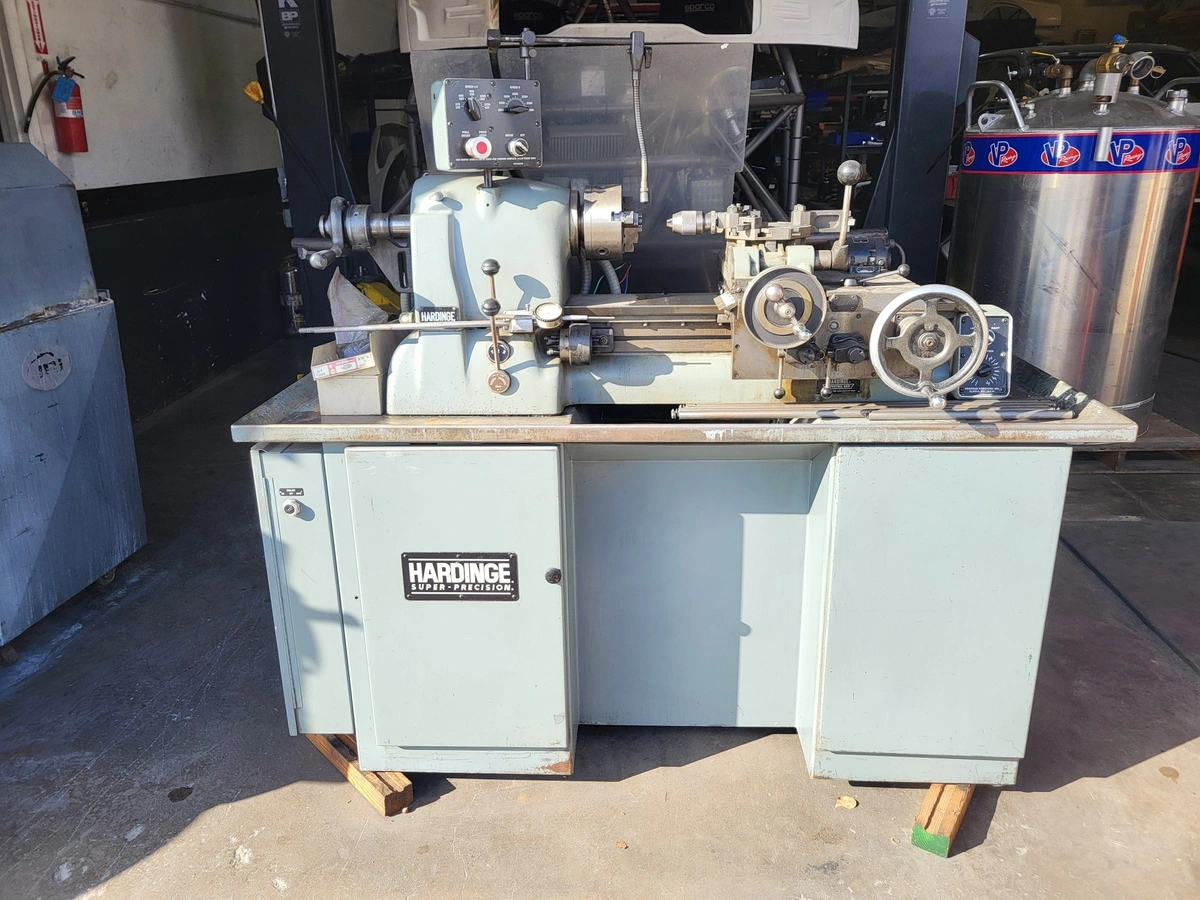

Used HARDINGE HC | Precision Lathes

Spindle Construction............Hardinge Preloaded Ball Bearing
Spindle capacity
w/round 5C Hardinge collets.....1-1/16"
w/Heksagon 5C Hardinge collets..7/8"
w/square 5C Hardinge collets....3/4"
w/step chucks...................1-1/16" to 6"
w/jaw chucks....................6"
Spindle nose diameter...........2.189"
Spindle nose thread.............2-3/16" - 10 R.H.
Maximum fixture diameter........9"
Maximum distance from face of turret
to spindle......................13"
Travel of cross slide...........4-1/2"
Cross slide power feed range....1/4" to 10" per min..
Spindle speeds..................3 Selector variable speed machines
Low speeds......................125 to 1100 rpm
High speeds.....................1100 to 3000 rpm
Electrics.......................220 volts, 3 ph, 60 cyc
Dimensions......................72" X 28" X 64"
Weight of machine...............1750 lbs.
