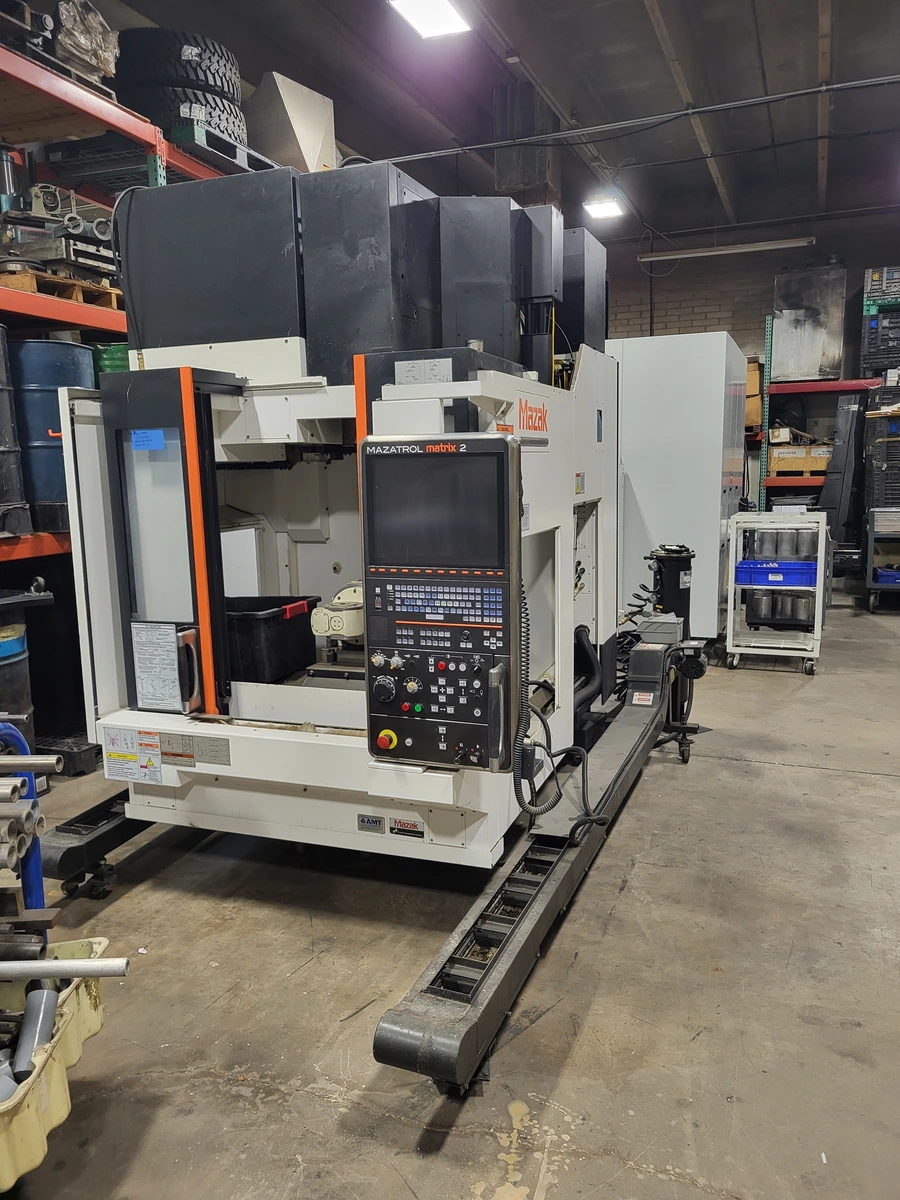

Mazak VCC 5X 5-Axis Machining Center

Table Size.................20.49" x 15.7"
Max Weight on Table........660 LBS
Table to Spindle Nose......3.9" - 23.6"
X-Axis Travel..............20.49"
Y-Axis Travel..............16.95"
Z-Axis Travel..............20.04"
A-Axis.....................-140° -15° ( Table Tilt )
C-Axis.....................360° ( Table Rotate )
Min. Increment.............0.001°
Taper Size.................CAT-40
Speed......................20,000 RPM
Spindle Power..............30 HP
ATC Capacity...............30 Tools
Max Tool Size..............4.92" X 7.5"
Max Tool Weight............18 LBS
Tool Change Time...........1.7 Second
Rapids (X & Y).............1575 Inch Per Minute
Z-Axis Rapids..............2047 Inch Per Minute
A-Axis Rapids..............40 RPM
C-Axis Rapids..............50 RPM
Cutting Feedrate...........984 IPM
Overall Dimensions.........120" X 73" X 106" High
Weight.....................12,000 LBS
