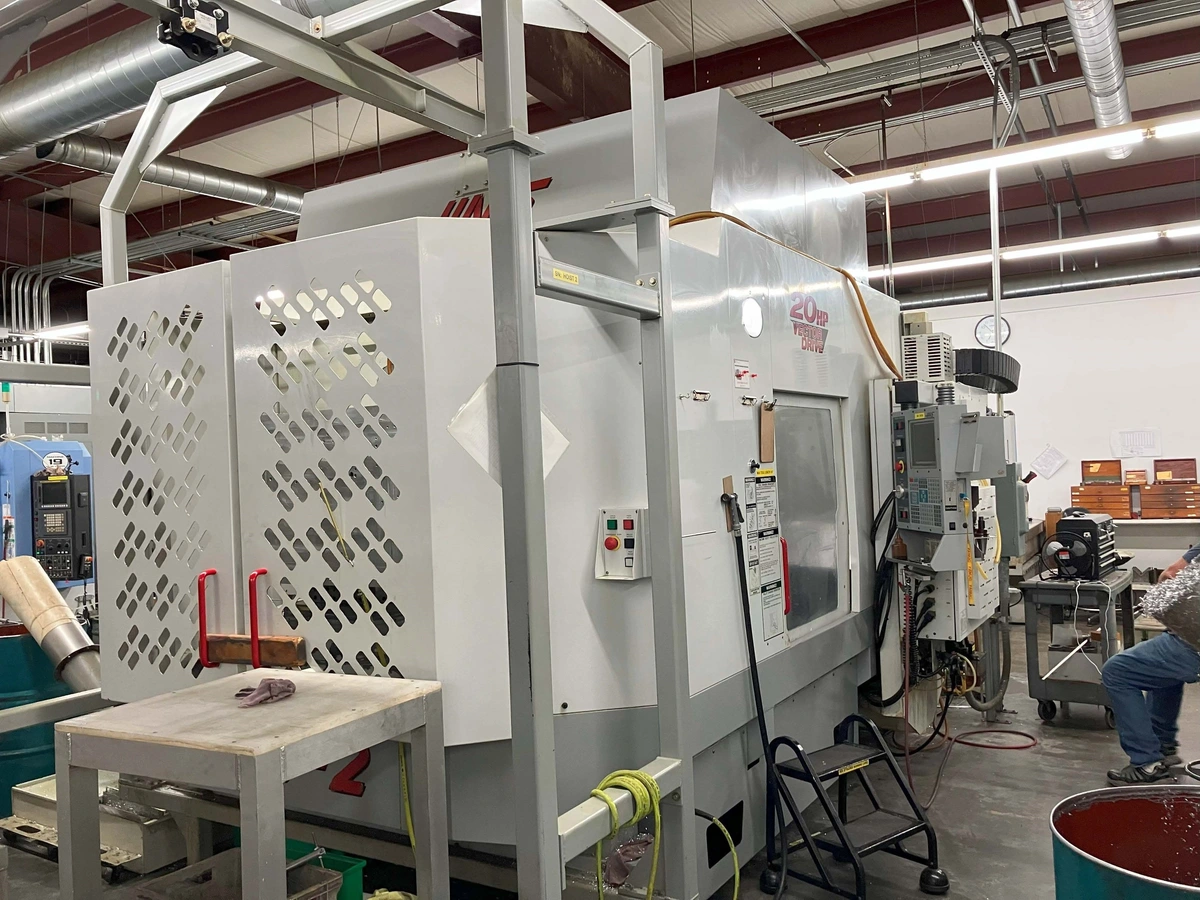

Haas HS-2RP Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
2001 Haas HS-2RP Horizontal Machining Center with 15,000 RPM, CAT-40 Spindle, 1 Degree 4th Axis, 60 Station ATC, High Speed Machining, Macros, M19, Rotate & Scaling, and Spindle Orientation.
PALLET SIZE...............................20" x 20"
MAXIMUM PALLET LOAD.......................1200 LBS
NUMBER OF PALLETS.........................2
SPINDLE CENTER TO PALLET TOP..............3.88" - 38.88"
SPINDLE NOSE TO PALLET CENTER.............5.125" - 36.125"
X AXIS TRAVEL.............................38"
Y AXIS TRAVEL.............................35"
Z AXIS TRAVEL.............................31"
B AXIS INDEXING...........................1 Degree
RAPID TRAVERSE RATE X, Y & Z AXIS.........710 IPM
CUTTING FEED RATE.........................0.1 - 500 IPM
SPINDLE TAPER.............................CAT-40
SPINDLE SPEEDS (2 SPEED GEARED)...........0 - 15,000 RPM
SPINDLE MOTOR.............................20 HP Vector Drive
TOOL CHANGER CAPACITY.....................60 ATC
MAXIMUM TOOL WEIGHT.......................12 LBS
DIMENSIONS (APPROXIMATE)..................193" x 173" x 121"
MACHINE WEIGHT (APPROXIMATE)..............25,000 LBS

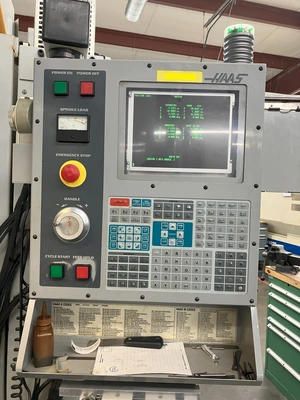

Haas CNC Control
15,000 RPM, CAT-40 Spindle
60 Station ATC
1 Degree 4th Axis
RS-232 Port
Floppy Disc
20 HP Vector Drive Motor
High Speed Machining
Macros
Rotate & Scaling
Spindle Orientation
M19
Rigid Tapping
Chip Auger
**TOMBSTONES NOT INCLUDED**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
