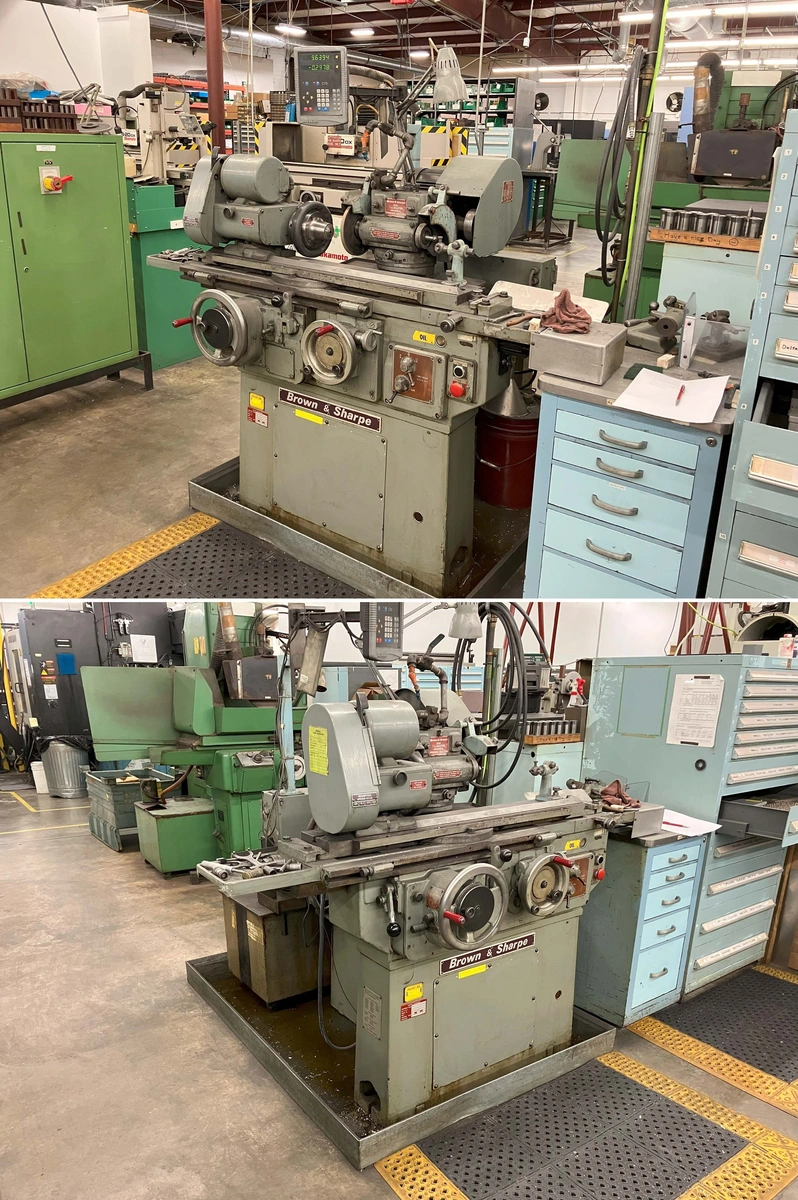

Brown & Sharpe 814U Valumaster Universal Grinding Machine

SPECIFICATIONS:
- GRINDS WORK UP TO ..................... 8" DIAMETER
- GRINDS LENGTH ......................... 14"
- DISTANCE BETWEEN CENTERS .............. 24"
WHEELHEAD:
- GRINDING WHEEL SIZE ................... 5", 7" OR 10" DIAMETER
- GRINDING WHEEL SPEEDS (3) ............. 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ...................... 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110 DEGREES
SWIVEL TABLE:
- ANGULAR SETTING TO LEFT & RIGHT ........ 90 DEGREES
- FINE SCREW ADJ. FOR SETTING TAPERS UP TO 3" PER FT.
- TABLE TRAVEL ........................... 22"
- TRAVEL PER REV. OF HANDWHEEL ........... 1/4" SLOW, 6-1/4" FAST
- POWER TABLE, (6) TABLE SPEEDS FROM ..... 7 -3/4" TO 100" IPM
HEADSTOCK:
- SWIVELS LEFT & RIGHT .................. 100 DEGREES
- SPINDLE SPEEDS (4) .................... 128 TO 540 RPM
- APPROX. DIMENSIONS .................... 65" x 55"D x 55"H
- APPROXIMATE WEIGHT: ................... 2,900 LBS.
