YAMA SEIKI MODEL SW-32 SWISS TURNING CENTER
Have one to sell?
ConditionUsed
1 available

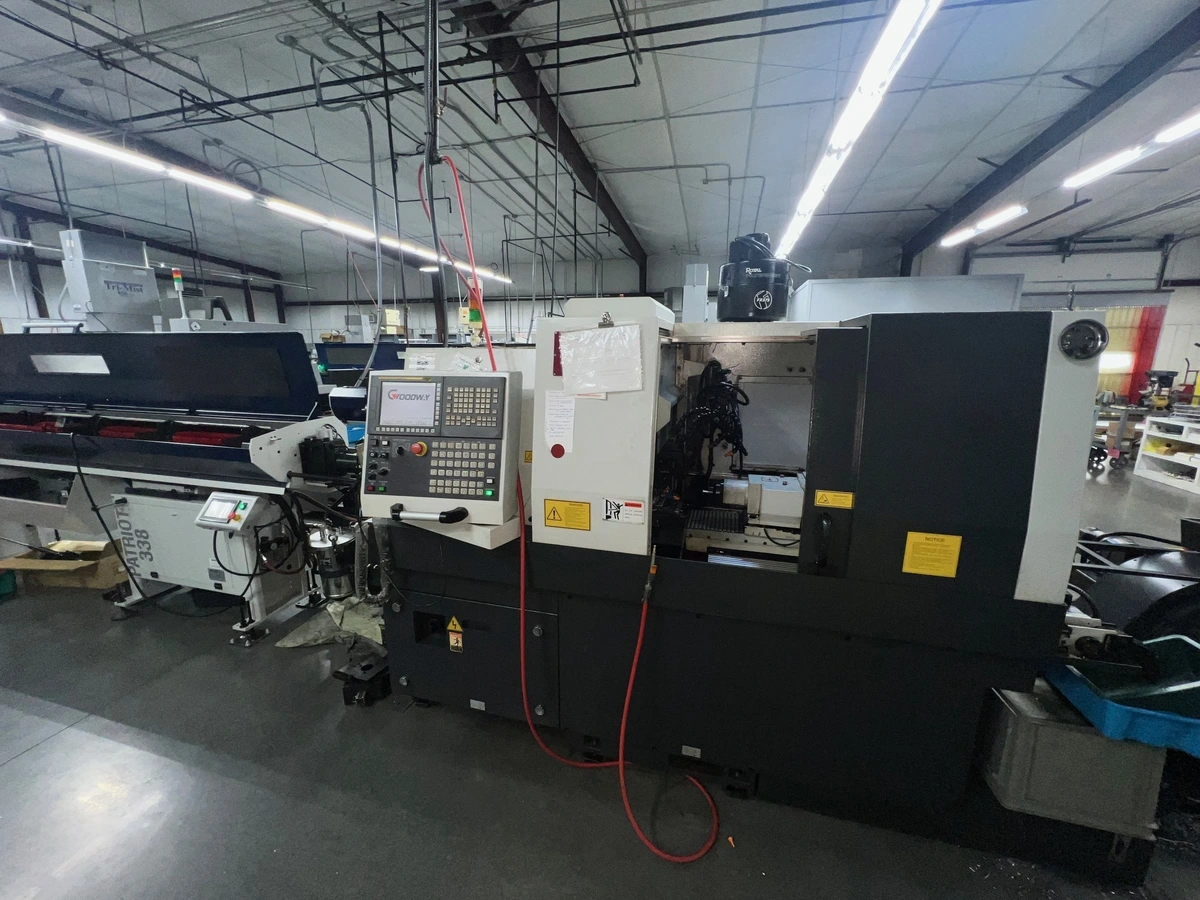

2015 Yama Seiki SW-32 Swiss Lathe with Edge Patriot 338 Barfeeder, Live Tooling, Sub-Spindle, High Pressure Coolant, Mist Collector, and Chip Conveyor.
MAX. MACHINING DIAMETER....................1.26" (32MM)
MAX. TURNING LENGTH........................12.4" (315MM)
OD NUMBER OF TOOLS.........................6
OD TOOL SIZE...............................0.63" (16MM)
ID NUMBER OF TOOLS.........................4
ID SLEEVE SIZE.............................ER-20
ID MAX. DRILLING CAPACITY..................0.51" (13MM)
ID MAX. TAPPING CAPACITY...................M12 x P 1.75
NUMBER OF LIVE TOOLS ON SLIDE..............5 - 10
SLIDE LIVE TOOL SPEED......................6,000 RPM
SLIDE LIVE TOOL MOTOR......................1.4 kW (1.9 HP)
SLIDE LIVE TOOL SLEEVE SIZE................ER-20
SLIDE LIVE TOOL DRILLING CAPACITY..........0.39" (10MM)
SLIDE LIVE TOOL TAPPING CAPACITY...........M8 x P1.25
SLIDE LIVE TOOL END MILL CAPACITY..........0.51" (13MM)
MAIN SPINDLE MAX. SPEED....................7,000 RPM
MAIN SPINDLE MOTOR.........................7.5 / 10 HP (5.5 / 7.5 kW)
MAIN SPINDLE MIN. INDEXING INCREMENT.......0.01º
SUB-SPINDLE MAX. CHUCKING DIAMETER.........1.26" (32MM)
SUB-SPINDLE MAX. LENGTH FRONT EJECTION.....5.11" (130MM)
SUB-SPINDLE MAX. PARTS PROJECTION LENGTH...1.97" (50MM)
BACK WORKING NUMBER OF TOOLS...............4
BACK WORKING TOOL SPEED....................5,000 RPM
BACK WORKING TOOL MOTOR....................1 HP (0.75 kW)
BACK WORKING DEAD DRILLING CAPACITY........0.52" (13MM)
BACK WORKING LIVE DRILLING CAPACITY........0.24" (6MM)
BACK WORKING DEAD TAPPING CAPACITY.........M10 x P1.25
BACK WORKING LIVE TAPPING CAPACITY.........M5 x P0.8
SUB-SPINDLE SPEED..........................7,000 RPM
SUB-SPINDLE MOTOR..........................3.0 / 5.0 HP (2.2 / 3.7 kW)
SUB-SPINDLE MIN. INDEXING INCREMENT........0.001º
AXES RAPIDS................................945 IPM
SPINDLE HEIGHT.............................41.7"
COOLANT TANK CAPACITY......................170 L
MACHINE DIMENSIONS.........................114.8" x 64.8" x 70.7"
MACHINE WEIGHT.............................7,040 LBS
FANUC 31I-B WITH 10.4" COLOR LCD

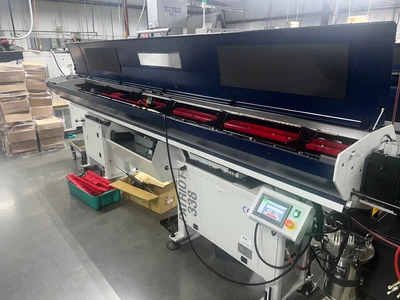

EDGE PATRIOT 338 BARFEEDER
C-AXIS CONTROL FOR THE MAIN AND SUB-SPINDLE
MIST COLLECTOR
REVOLVING GUIDE BUSH UNIT (COLLET NOT INCLUDED) WITH CHUCKER KIT
6-STATION TOOL HOLDER
5-STATION DRIVE INCLUDING 3 CROSS DRILLING UNITS
4-STATION DRILLING TOOL HOLDER FOR BACK MACHINING
4-STATION BACKWORKING UNIT INCLUDING DRIVE
FRONT DRILLING UNIT WITH 2 TOOLS FOR DEEP-HOLE DRILLING
SUB SPINDLE
AIR BLOW UNIT FOR SUB SPINDLE
PARTS CATCHER & PARTS CONVEYOR
PARTS CUT OFF DETECTOR
PARTS EJECTION DETECTOR
PNEUMATIC SUB-SPINDLE EJECTOR
AUTO LUBRICATION UNIT WITH LEVEL DETECTOR
HIGH PRESSURE COOLANT SYSTEM INTERFACE (M-CODE)
HIGH PRESSURE COOLANT SYSTEM
FLORESCENT WORK LIGHT
3 COLOR WARNING LIGHT
COOLANT SYSTEM WITH LEVEL DETECTOR
ROLL OUT CHIP TANK
DOOR INTERLOCK (INCL. MECHANICAL LOCK)
HEAT EXCHANGER
TOOL BOX
CHIP CONVEYOR
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
