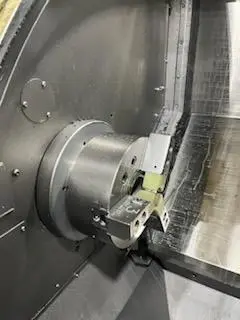

Okuma Crown 762S-BB CNC Lathe

Swing Over Bed....................21.65"
Swing Over Cross Slide............15.75"
Max Turning Diameter..............10.63"
Max Turning Length................19.68"
Distance Between Centers..........22.29"
X-Axis Travel.....................7.28"
Z-Axis Travel.....................20.47"
Spindle Bore......................3.15"
Max Bar Capacity..................3.05"
Spindle Nose......................A2-8
Spindle Motor.....................22 HP
Spindle Speed.....................65 – 3500 RPM
Rapid Traverse X Axis.............590 IPM
Rapid Traverse Z Axis.............787 IPM
Turret Capacity...................12 Stations
Turret Index Time.................1 Second
Tailstock Taper...................MT-5
Tailstock Quill Dia...............3.54"
Tailstock Quill Travel............4.72"
Dimensions........................104" x 74" x 72"
Weight............................13,000 lbs
