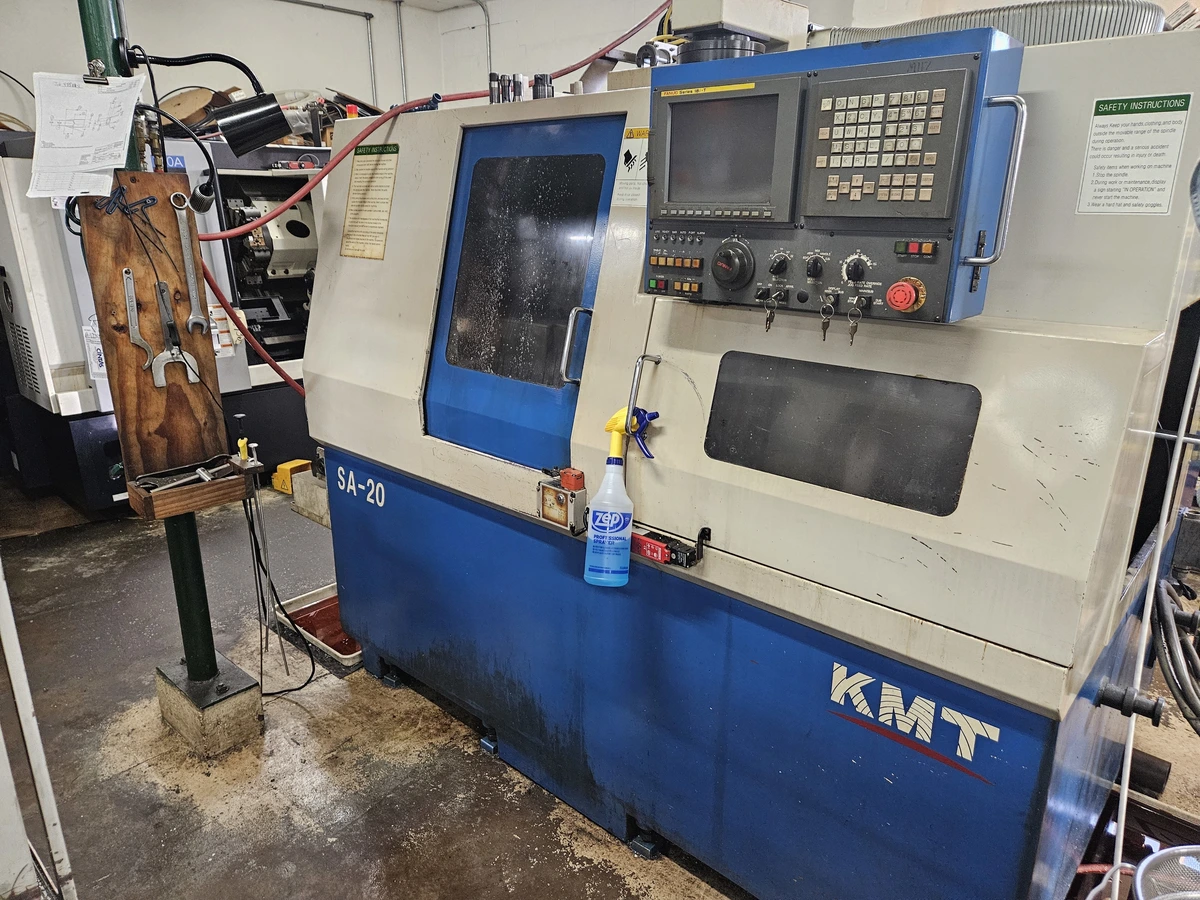

KMT SA-20 CNC Swiss Lathe

Number of Axes.........................7
Turning Bar Diameter...................3/4"
Turning Bar Length.....................8.26"
Drilling/Tapping, Main.................0.39" Dia./M8
Chucking Diameter, Sub.................3/4"
Drilling/Tapping, Back-End Face........0.31" Dia./M6
Drilling/Tapping, Cross................0.31" Dia./M6
Disc-Mill Diameter, Cross (Cutter).....1-1/4" Dia.
Spindle Speed (Main/Sub/Cross).........8,000 RPM
Tool Positions.........................22
OD/Cross Tool..........................OD 6(5, Y-axis ID 3)/Cross 4
ID Tool................................SUB Live tool (Std:2, Opt:4)
Byte Shank.............................0.47" x 4.72"
Rapid Traverse (All Axes)..............1259 IPM
Main Spindle Motor.....................5 HP
Sub Spindle Motor......................3 HP
Cross Drill/Mill Unit..................1-1/2 HP
Coolant Pump...........................0.50 HP
Lubrication Pump.......................0.05 HP
Axes (Z1/Z2/X1/X2/Y)...................1 HP
Electrics..............................208V/3PH/60HZ
Machine Dimensions.....................76" x 53" x 65"
Machine Weight.........................6,172 lbs
