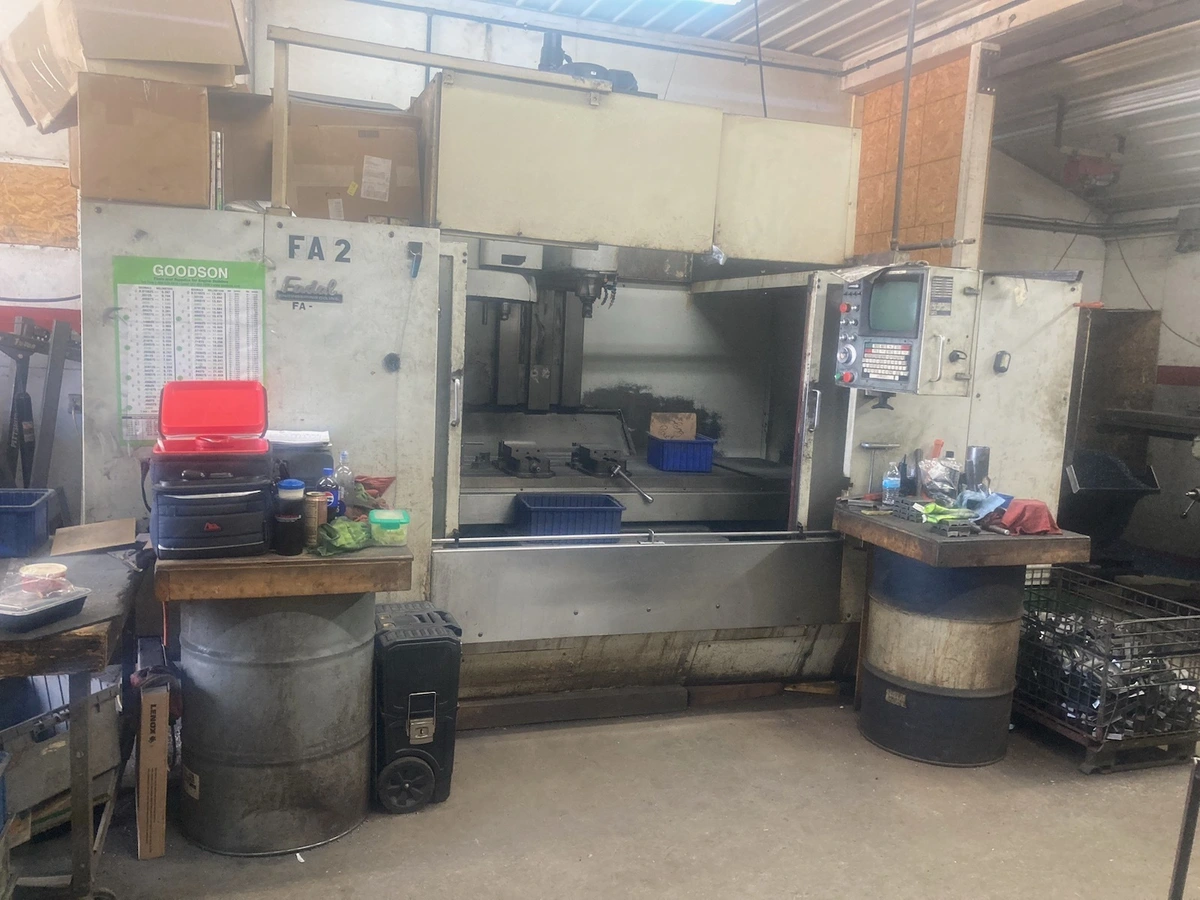

Fadal VMC 6030 HT Vertical Machining Center

Table Size....................62.5" x 30"
Max Weight on Table...........3500 lbs
X-Axis Travel.................60"
Y-Axis Travel.................30"
Z-Axis Travel.................30"
Spindle Power.................22.5 HP
Taper Size....................CAT-40
Speed Speed...................10,000 RPM
Max Torque....................230ft-lb @ 500RPM
Number of Tools...............21 ATC
Max Tool Weight...............15 lbs
Max Tool Dia..................6"
Max Tool Length...............15"
Tool Changing Time............4.2 Seconds
Overall Dimensions............162" x 104" x 125"
Weight........................17,000 lbs
