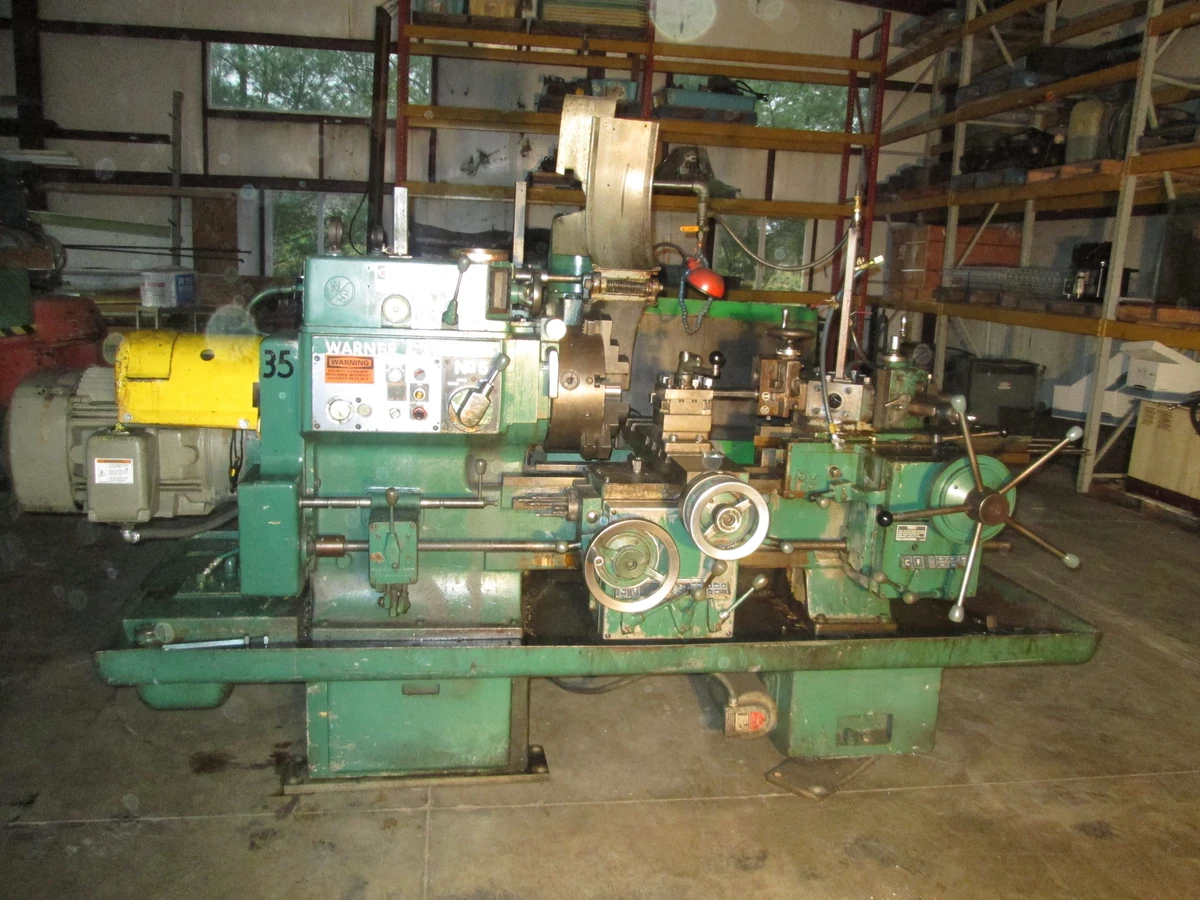

WARNER & SWASEY #5 M-4660 BIG BORE

MAXIMUM SWING..........................20.5"
SWING OVER CARRIAGE GUIDES.............17-3/4"
SWING OVER CROSS SLIDE.................10-1/4"
MAXIMUM DISTANCE SPINDLE TO TURRET.....36.50"
CROSS SLIDE:
LONGITUDINAL TRAVEL..................23"
CROSS TRAVEL.........................10"
LONGITUDINAL FEED RANGE (6)..........0.005 - 0.047 IPR
CROSS FEED RANGE (6)...................0.002 - 0.019 IPR
HEXAGON TURRET:
STROKE OF HEX TURRET (MAXIMUM).......13"
HEX TURRET FEEDS (6).................0.004 - 0.045 IPR
SPINDLE MOTOR..........................20 HP
SPINDLE TAPER..........................A1-11
SPINDLE BORE...........................5"
SPINDLE SPEED..........................1,556 RPM
MACHINE DIMENSIONS.....................130" X 64" X 72"
MACHINE WEIGHT.........................9,000 LBS
