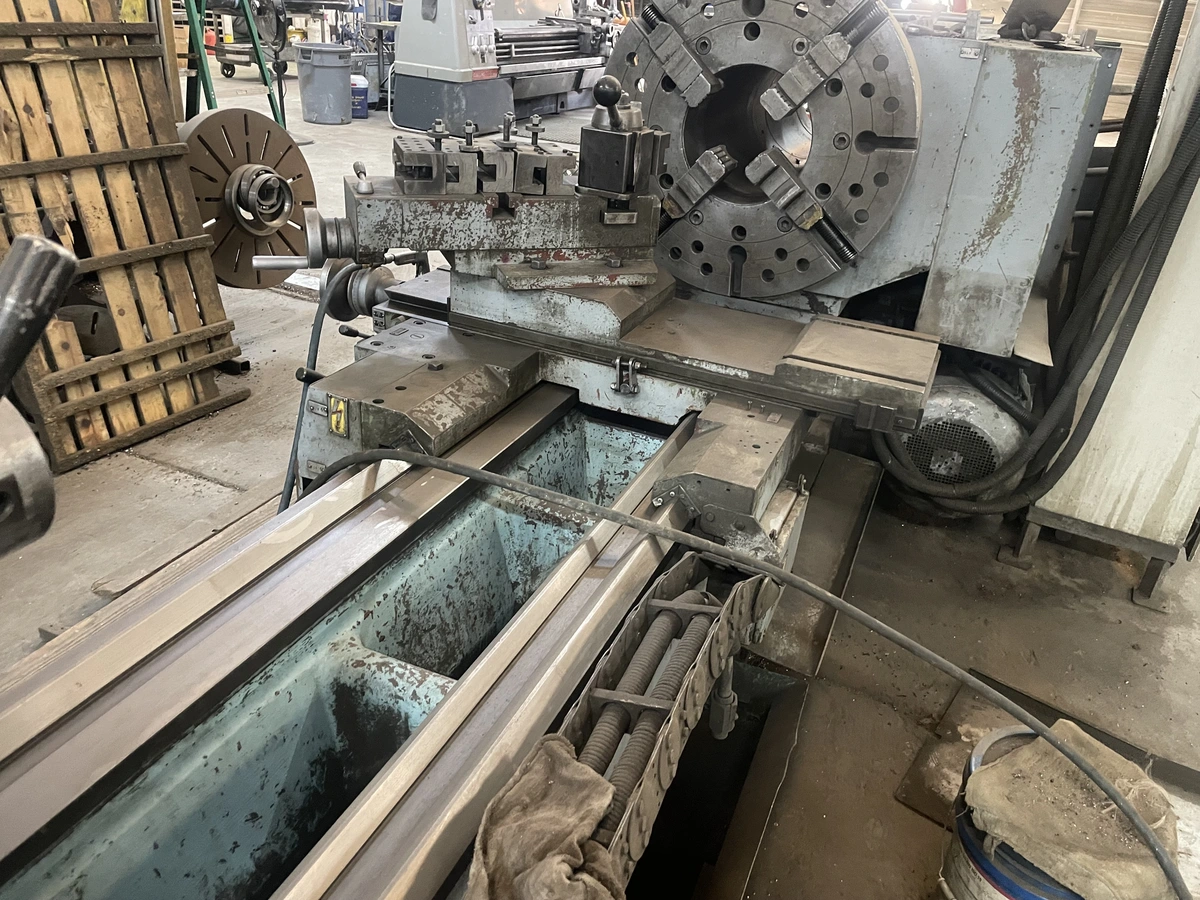

Poreba TPK90A1/4M Universal Engine Lathe

Swing Over Bed Ways, Rated...........36.5"
Swing thru Gap.......................49"
Swing Over Carriage..................25.5"
Turning Length In Gap................16.75"
Distance Between Centers.............157"
Weight Capacity Between Centers......13,500 LBS
Motor, Horsepower....................21/30 HP
Hole Thru Spindle....................12.5"
Spindle Speeds, Range................14 to 710 RPM
(80) Longitudinal Feeds, Range.......0.0043 to .0670 IPR
(80) Cross Feeds, Range..............0.0021 to .033 IPR
(61) Thread Range....................1/4 to 30 TPI
(72) Metric Thread, Range............1 to 120 MM/M
Power Rapid Traverse, Carriage.......13 FPM
Quill Taper..........................6 MT
Tailstock Quill Diameter.............5.125"
Tailstock Quill Travel...............12"
Weight Approximately.................21,000 LBS
