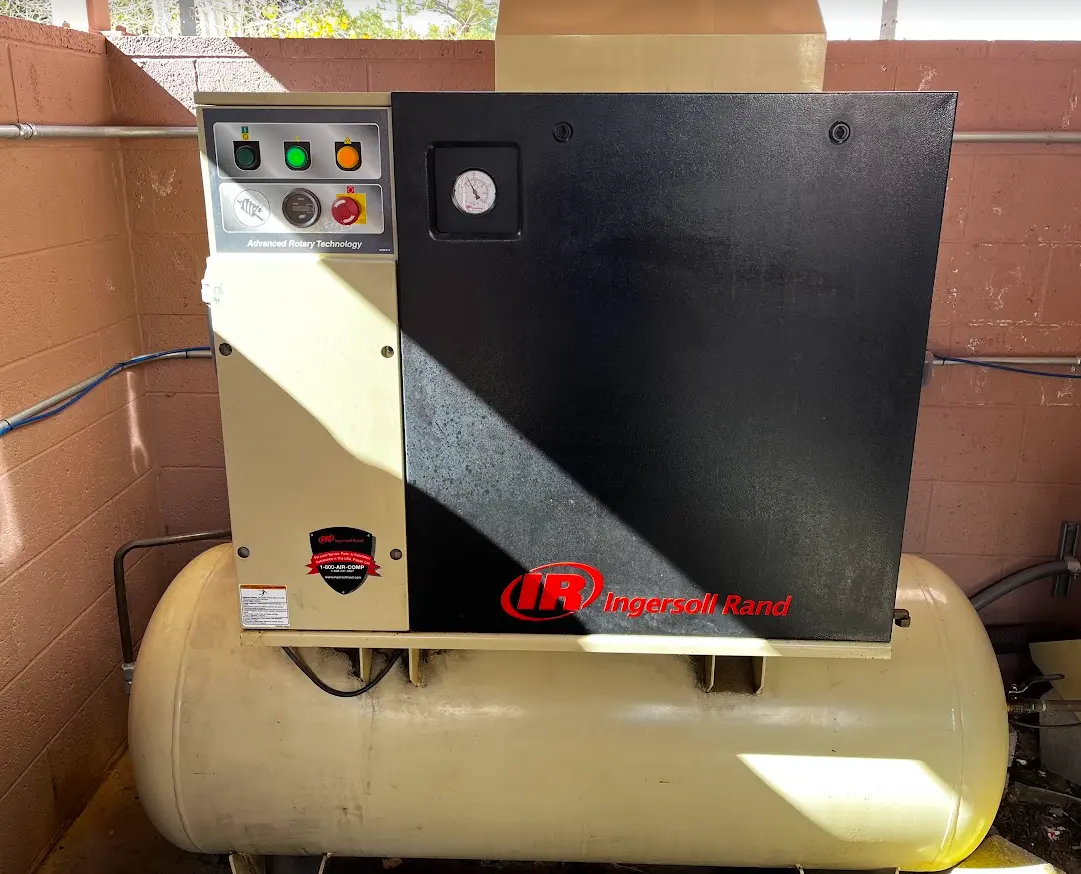

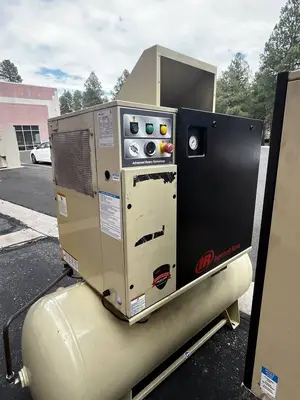

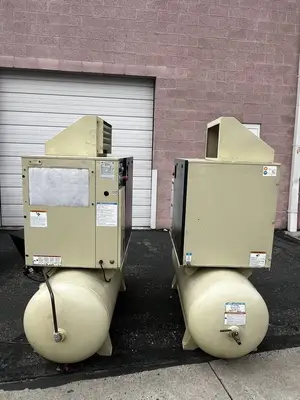

Ingersoll Rand UP6-15C-125 Rotary Screw Air Compressor - 15 HP, 125 PSI, 52CFM at 135 PSI.
DESCRIPTION:
The UP6 Series of oil-flooded rotary screw compressors provides a complete air solution in an easy to use, easy to access
compact package, delivering efficient performance. This 15hp rotary screw air compressor is rated to displace 52cfm @ 125psi
and is mounted on a 120 gallon horizontal receiver tank. The package enclosure is carefully designed to provide effective
sound emission control and suppression, while retaining easy access for maintenance and access to major components.
The front door lifts off if required to provide easy access to all routine maintenance points.
This door provides easy access to carry out all of the maintenance procedures for the compressor.
The side panel can be removed for maintenance on the dryer and filter section.
Speed, torque and operating characteristics have been designed to match the load of the compressor.
Motor efficiency and power factor have been optimized for the UP6-15C TAS compressor.
The motor has a minimum of class F insulation as standard and is specified to operate in ambient conditions up to 104F (40C).
This unit is wired in either 208v/3ph, 230v/3ph or 460v/3ph power. The standard configuration is 125psi however this can be
preset to run at 150psi if desired upon ordering.
FEATURES:
Efficient Operation: Advanced high-efficiency combination cooler with roof-mount package exhaust enables easy ducting
Easy to Use: Simple diagnostics, auto start/stop and a spacious design to maximize serviceability makes the UP6 Series easy to operate
Safer Work Environment: Whisper quiet operation allows for installation closer to point-of-use, reducing costs and ensuring a better
and safer work environment
Enhanced Reliability: Fewer connections and smart integration eliminates leaks and pressure drops maximizing reliability
Extend Equipment Life: Closely maintained discharge pressure avoids excessive pressure bands increasing downstream tool and equipment life
Compact Footprint: Small footprint frees up valuable floor space and reduces install costs
SPECIFICATIONS:
Max Pressure...................125 PSI
Pump Speed.....................6,250 RPM
Duty Cycle.....................100% Continuous Duty
Drive Style....................Belt Drive
Sound Level....................69dBA
Connection Size................3/4" NPT
Horse Power....................15
Max Pressure (PSI).............125
CFM @ 135 PSI..................52
Voltage........................200
Phase..........................Three
Configuration..................Horizontal
Tank Size......................120 Gallons
Dimensions.....................75" x 29" x 61"
Weight.........................946 lbs

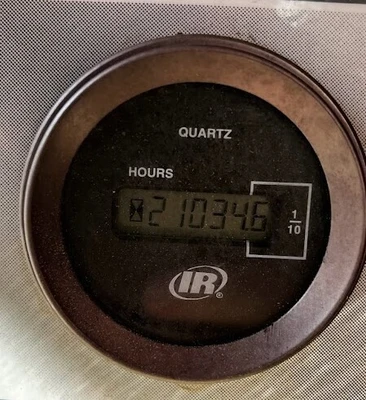

**MACHINE HAS 21,000 HOURS AND HAD EXTENSIVE MAINTENANCE IN 2023 FOR $10K**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
