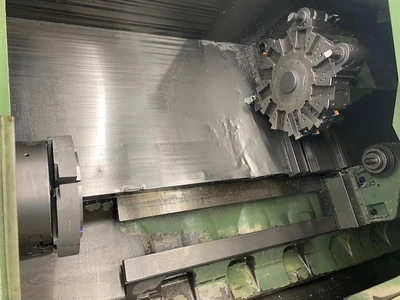

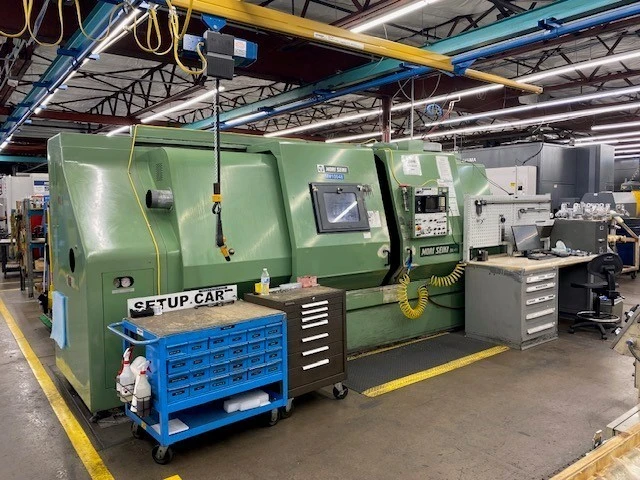

Mori Seiki SL-45A/1000 CNC Lathe

Swing Over Bed....................26.37"
Swing Over Cross Slide............18.1"
Max Turning Diameter..............19.3"
Between Centers...................66.6"
X-Axis Travel.....................10.6"
Z-Axis Travel.....................62.7"
Spindle Motor.....................45 HP
Spindle Nose......................A1-11
Spindle Hole Dia..................4.1"
Bar Work Capacity.................3.5"
Spindle Speed.....................1000 RPM
Rapid Traverse X-Axis.............472 IPM
Rapid Traverse Z-Axis.............590 IPM
Number of Tool Stations...........12
Tailstock Taper...................MT-5
Quill Diameter....................5.9"
Quill Travel......................5.9"
Tailstock Body Travel.............52.7"
Machine Weight....................25,000 LBS
