Emco Maier Maximat V13 13" x 40" Precision Engine Lathe
Have one to sell?
ConditionUsed
1 available

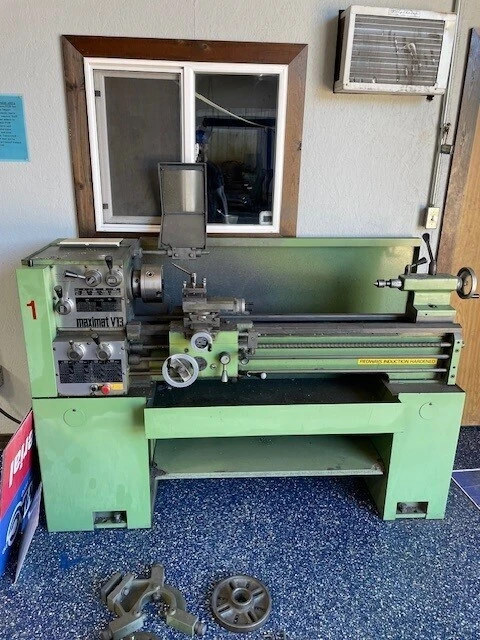

Emco Maier Maximat V13 13" x 40" Precision Engine Lathe with 6" Chuck, Tool Post, Tailstock, Steadyrest, and Chip Guard.
Swing............................13"
Swing Over Cross Slide...........7.5"
Distance Between Centers.........39.4"
Thru Hole........................1.4"
Spindle Speeds (8)...............50 – 2000 RPM
Threads–Inch (24)................4 – 56 TPI
Threads–Metric (28)..............0.4 – 7 MM
Spindle Nose.....................D1-4
Motor HP.........................3 HP
Cross Slide Travel...............8"
Tail Stock Quill Taper...........#3 MT
Tail Stock Quill Travel..........4"
Electrical.......................220V/3PH
Approx. Shipping Dimensions......76" L x 50" W x 67" H
Approx. Shipping Weight..........1,750 LBS
6" Chuck
Tool Post
Tailstock
Steadyrest
Chip Guard
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Emco Maier Maximat V13 13" x 40" Precision Engine Lathe with 6" Chuck, Tool Post, Tailstock, Steadyrest, and Chip Guard.
Imperial
| Swing | 13" |
| Centers | 40" |
| Spindle Bore | 1.4" |
| Power | 3 hp |
| RPM | 2,000 RPM |
| Swing Over Cross Slide | 7.5" |
| Dimensions | 76" L x 50" W x 67" H |
| Weight | 1,750 LBS |
Swing............................13"
Swing Over Cross Slide...........7.5"
Distance Between Centers.........39.4"
Thru Hole........................1.4"
Spindle Speeds (8)...............50 – 2000 RPM
Threads–Inch (24)................4 – 56 TPI
Threads–Metric (28)..............0.4 – 7 MM
Spindle Nose.....................D1-4
Motor HP.........................3 HP
Cross Slide Travel...............8"
Tail Stock Quill Taper...........#3 MT
Tail Stock Quill Travel..........4"
Electrical.......................220V/3PH
Approx. Shipping Dimensions......76" L x 50" W x 67" H
Approx. Shipping Weight..........1,750 LBS
6" Chuck
Tool Post
Tailstock
Steadyrest
Chip Guard
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
