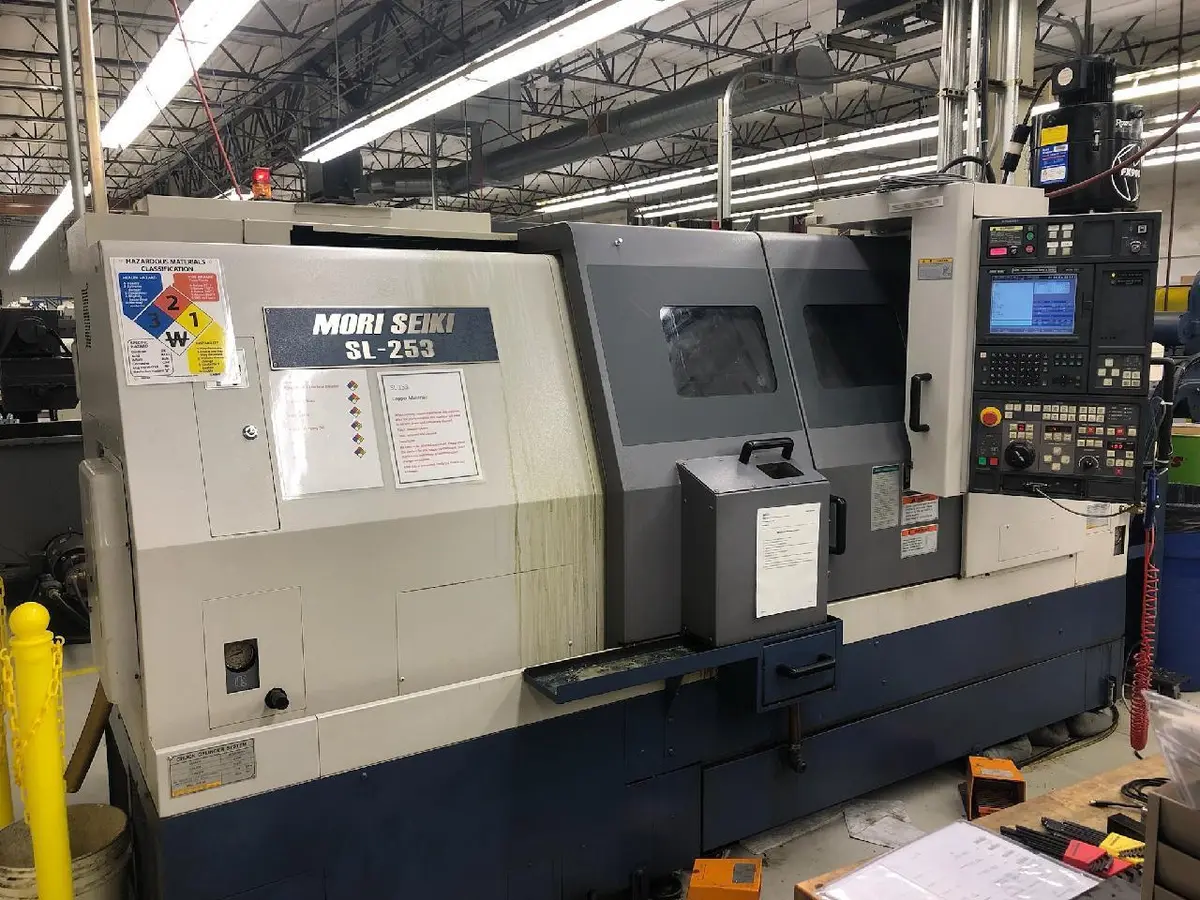

MORI SEIKI SL-253BSMC MULTI-AXIS TURNING CENTER
Have one to sell?
ConditionUsed
1 available

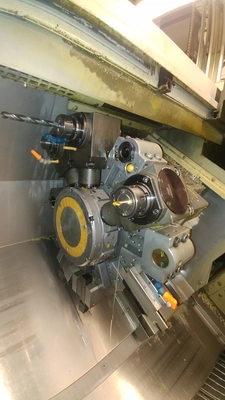

2001 MORI SEIKI SL-253BSMC MULTI-AXIS TURNING CENTER - MSG-501 (Fanuc 18i-MB) Control with MAPPS Programming, 10" Chuck, Tool Setter, Sub-Spindle, Live Tooling, Full C-Axis Both Spindles, Parts Catcher, Mist Collector, Chip Conveyor.
SWING OVER BED.................26.8"
SWING OVER CROSS SLIDE.........20.1"
MAXIMUM TURNING DIAMETER.......15.3"
MAXIMUM TURNING LENGTH.........33.4"
MAX DISTANCE BETWEEN CENTERS...48.8"
X-AXIS TRAVEL..................9.3"
Z-AXIS TRAVEL..................41.1"
B-AXIS TRAVEL (SUB-SPINDLE)....37.0"
C-AXIS INDEXING................0.001 DEGREE
MAIN MOTOR.....................20 HP
SPINDLE NOSE...................A2-8
HOLE THROUGH SPINDLE...........3.4"
BAR CAPACITY...................2.9"
SPINDLE SPEED..................3,500 RPM
SUB-SPINDLE MOTOR..............10 HP
SUB-SPINDLE NOSE...............A2-5
HOLE THROUGH SUB-SPINDLE.......1.7"
SUB-SPINDLE SPEED..............6,000 RPM
TURRET TOOL POSITIONS..........10 LIVE STATIONS
MILLING MOTOR..................8.7 HP
MILLING SPEED..................3,000 RPM
RAPID TRAVERSE RATES (X/Z/B)...708/944/944 IPM
MACHINE DIMENSIONS.............131.6" X 77.7" X 75"
MACHINE WEIGHT.................13,200 LBS
MSG-501 (FANUC 18I-MB) CNC CONTROL WITH MAPPS PROGRAMMING
10" CHUCK
TOOL PRESETTER
SUB-SPINDLE
LIVE TOOLING
FULL C-AXIS BOTH SPINDLES
PARTS CATCHER

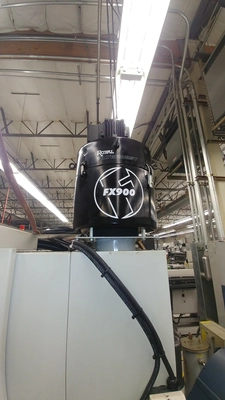

ROYAL FX900 MIST COLLECTOR
CHIP CONVEYOR
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
