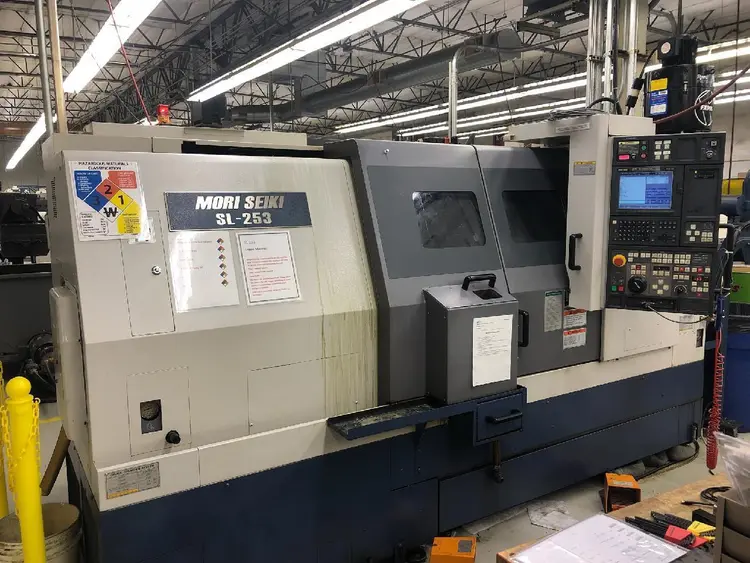

Mori Seiki SL-253BSMC/1000 Multi-Axis Turning Center
5-Axis or More CNC Lathes
2001 Mori Seiki SL-253BSMC/1000 Multi-Axis Turning Center with MSG-501 Control, Sub-Spindle, Live Tooling, Full C-Axis, Parts Catcher, and Mist Collector.
| Year | 2001 |
| # Axis | 5 |
| Swing | 26.77" |
| Chuck Size | 10" |
| Bar Capacity | 2.8" |
| Power | 20 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 15.35" |
| Tailstock | No |
| Control | CNC (MSG-501 (Fanuc 18i-MB) CNC Control) |
SWING OVER BED.................26.77"
SWING OVER CROSS SLIDE.........20.08"
MAXIMUM TURNING DIAMETER.......15.35"
MAXIMUM TURNING LENGTH.........40"
MAIN MOTOR.....................20 HP
SPINDLE NOSE...................A2-8
HOLE THROUGH SPINDLE...........3.38"
BAR CAPACITY...................2.87"
C-AXIS INDEXING................0.001 Degree
SPINDLE SPEED..................3,500 RPM
Sub-Spindle Motor..............15 HP
Sub-Spindle Nose...............A2-6
Sub-Spindle Speed..............3,500 RPM
MILLING SPEED..................3,000 RPM
TURRET TOOL POSITIONS..........10 Live Stations
MSG-501 (Fanuc 18i-MB) CNC Control
10" Chuck
Tool Presetter
Sub-Spindle
Live Tooling
Full C-Axis
Parts Catcher
Mist Collector
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
