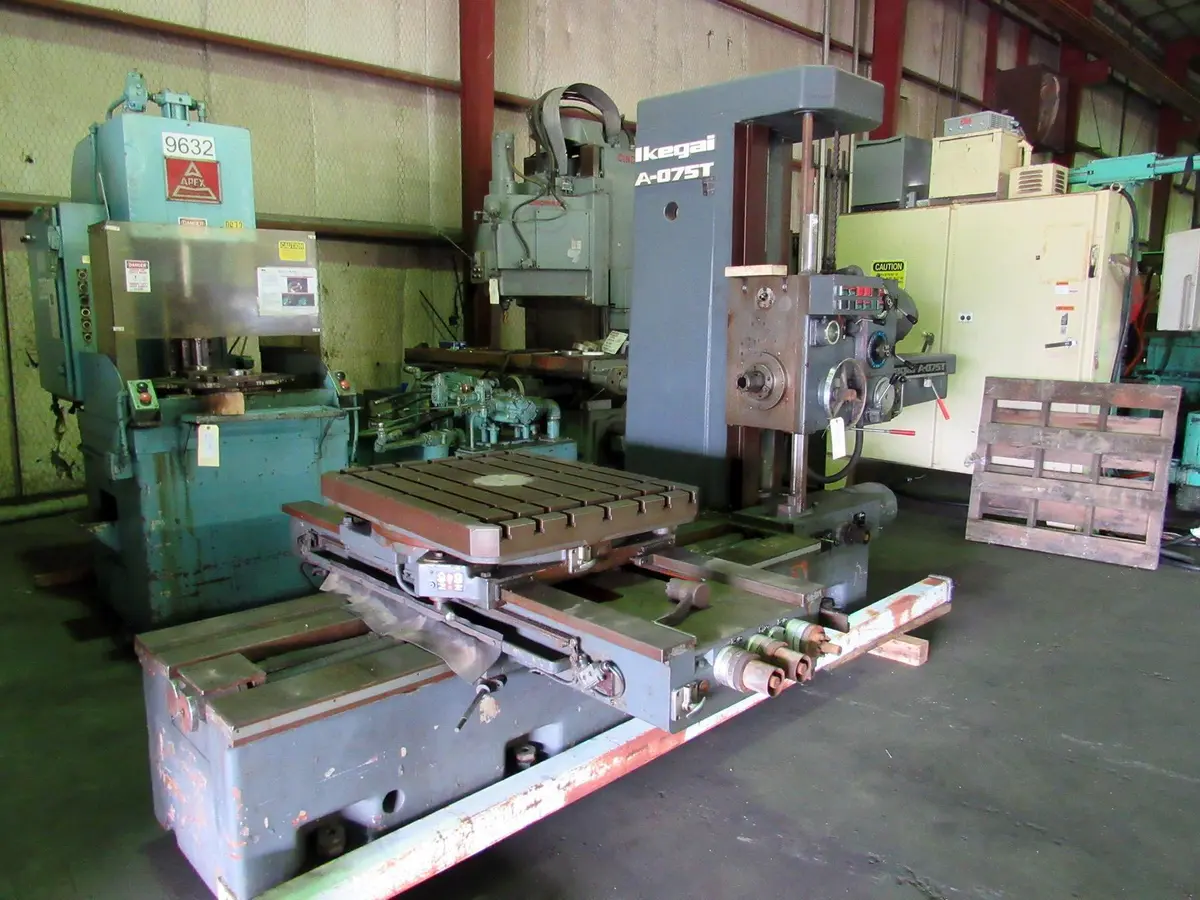

Ikegai Model A-075T Table Type Horizontal Boring Mill
Horizontal Floor Type Boring MillsIkegai Model A-075T Table Type Horizontal Boring Mill - 3" Spindle, 32" x 40" Table, Built in Rotary Table
Spindle Diameter................3"
Spindle Taper...................Morse
Spindle Speeds (16).............25 to 1250 RPM
Spindle Motor...................10 HP
Feeds (8).......................0.001 to 0.157 IPR
Rapid Feed......................98 IPM
Rapid Feed Motor................3 HP
Rapid Table Rotation............2 RPM
Table Longitudinal Travel.......40"
Table Cross Travel..............40"
Headstock Vertical Travel.......30"
Spindle Axial Travel............24"
Table Size......................32" x 40"
Inch Threads (5)................6 to 96 TPI
Metric Threads (5)..............0.25 to 4 mm
Max Table Load Capacity.........5500 lbs
Approx Floor Space..............84" x 142"
Approx Weight...................18,700 lbs
Built-in Rotary Table
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
