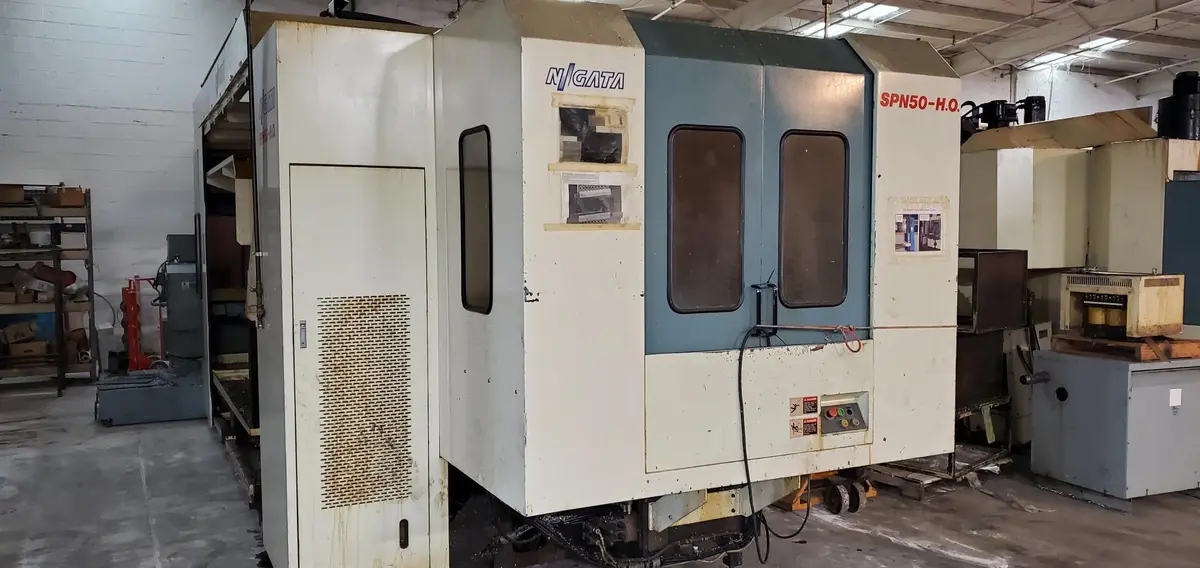

Niigata SPN50-HO CNC Horizontal Machining Center

Pallet Size.......................19.69" x 19.69"
Number of Pallets.................2
Max. Pallet Capacity..............1,320 LBS
Pallet Indexing...................0.001 Degree (Full 4th Axis)
Spindle Nose to Pallet Center.....5.9" - 35.4"
Spindle Center to Pallet..........3.15" - 32.7"
X-Axis Travel.....................32"
Y-Axis Travel.....................30"
Z-Axis Travel.....................32"
Spindle Motor.....................60/50 HP
Spindle Taper.....................CAT-50
Spindle Speed.....................15,000 RPM
Rapid Traverse Rates..............2,362 IPM
Cutting Feedrate..................1,575 IPM
Number of Tools...................60 ATC
