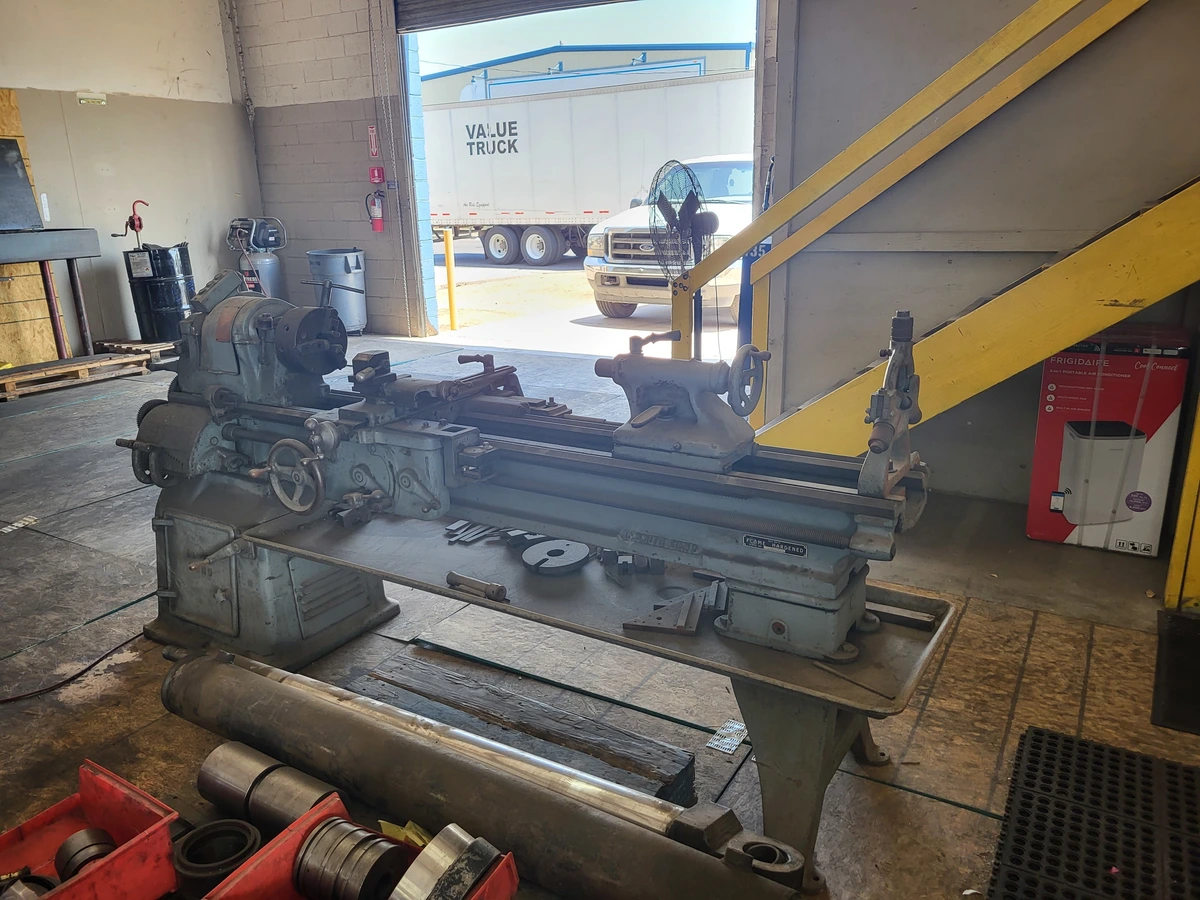

South Bend 16" x 60" Engine Lathe
Have one to sell?
ConditionUsed
1 available
South Bend 16" x 60" Engine Lathe with 8" Chuck, Tailstock, and Steadyrest.
SWING OVER WAYS .............. 16"
SWING IN GAP ................. 25
SWING OVER CROSS SLIDE ....... 10-1/4"
DISTANCE BETWEEN CENTERS ..... 60"
SPINDLE SPEEDS VARIABLE ...... 20 TO 2500 RPM
FEEDS......................... .0033 TO 1.7 IPR
MOTOR HORSEPOWER ............. 7.5
DIAMETER OF SPINDLE HOLE ..... 2"
CHUCK ........................ 8" 3-JAW
HARD WAYS .................... YES
8" 3-Jaw Chuck
Tailstock
Steadyrest
Flame Hardened Ways
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
