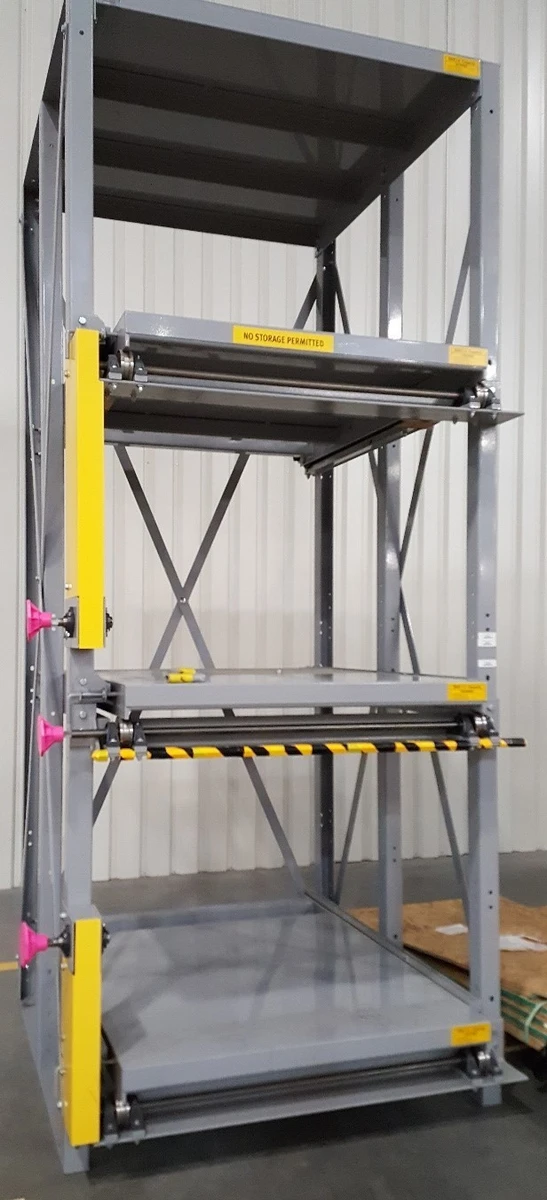

Cisco Eagle 12XDC-4848-75-3 Heavy Duty Crank-Out Storage Rack

DESCRIPTION:
Easily load and unload heavy products that require a forklift or overhead hoist
to be lifted, with the crank-out glide-out storage rack. Shelves glide out when
the ergonomic cranking handle is turned on the side of the unit, allowing items
to be easily accessed from an overhead crane or a forklift. The cranking points
for each shelf are placed at an ergonomic height, and when the shelf is fully
extended to the maximum 75%, a locking pin slides into the shelf to make sure it
is secure for the loading or unloading of products. Each shelf is constructed
using an all-welded design, made from sturdy 10 gauge steel and have a
capacity of 5,000 lbs. per level. This unit features three crank-out shelves plus
fixed top shelf

SPECIFICATIONS:
Crank-Out Shelves.................3
Shelf Size (D x W)................48" x 48"
Rack Height.......................12'
Rack Width........................60.375"
Rack Depth........................64.75"
Capacity (per shelf)..............5,000 LBS
Shelf Material....................10 Gauge Steel
Shelf Construction................All Welded
Shelf Extension...................0.75
Weight............................2,500 LBS
