Summit EVS-550B-CNC Milling Machine
Have one to sell?
ConditionUsed
1 available

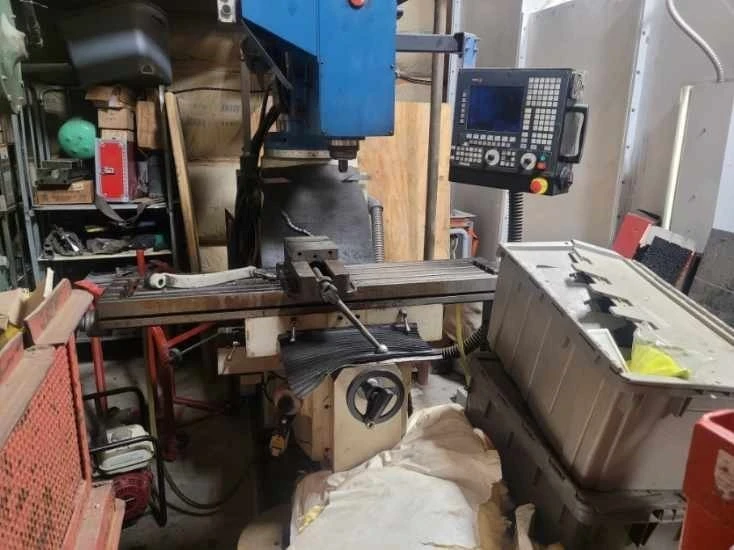

2012 Summit EVS-550B-CNC Milling Machine with Fagor CNC Control, CAT-40 Spindle and Tool Holders Included, Low Hours.
Table Size.....................11" x 52" x 3 1/8"
Max. Weight of Work Piece......850 LBS
Spindle Nose to Table..........2" – 22"
Table Feed, Longitudinal.......32-1/2"
Table Feed, Cross..............16"
Spindle Travel.................5-1/2"
Motor..........................5 HP
Spindle Speeds.................3,650 RPM (Variable)
Spindle Taper..................CAT-40
Spindle Feed Range.............0.0015 / 0.003 / 0.006 IPR
Head Movement, Side to Side....+/- 90°
Rotation of Over Arm...........360°
Over Arm Adjustment............24"
Weight.........................3,740 LBS
Fagor 8055 MC CNC Conversational Control
Power draw bar
One shot lubrication
Way covers
Lots of CAT-40 Holders Included
Low Hours
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2012 Summit EVS-550B-CNC Milling Machine with Fagor CNC Control, CAT-40 Spindle and Tool Holders Included, Low Hours.
Imperial
| Table-W | 11" |
| Table-L | 52" |
| Travel-Long | 32.5" |
| Travel-Cross | 16" |
| Power | 5 hp |
| RPM | 3,650 RPM |
| Taper | CAT-40 |
| Control | CNC (Fagor 8055MC) |
| Weight | 3,740 LBS |
Table Size.....................11" x 52" x 3 1/8"
Max. Weight of Work Piece......850 LBS
Spindle Nose to Table..........2" – 22"
Table Feed, Longitudinal.......32-1/2"
Table Feed, Cross..............16"
Spindle Travel.................5-1/2"
Motor..........................5 HP
Spindle Speeds.................3,650 RPM (Variable)
Spindle Taper..................CAT-40
Spindle Feed Range.............0.0015 / 0.003 / 0.006 IPR
Head Movement, Side to Side....+/- 90°
Rotation of Over Arm...........360°
Over Arm Adjustment............24"
Weight.........................3,740 LBS
Fagor 8055 MC CNC Conversational Control
Power draw bar
One shot lubrication
Way covers
Lots of CAT-40 Holders Included
Low Hours
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
