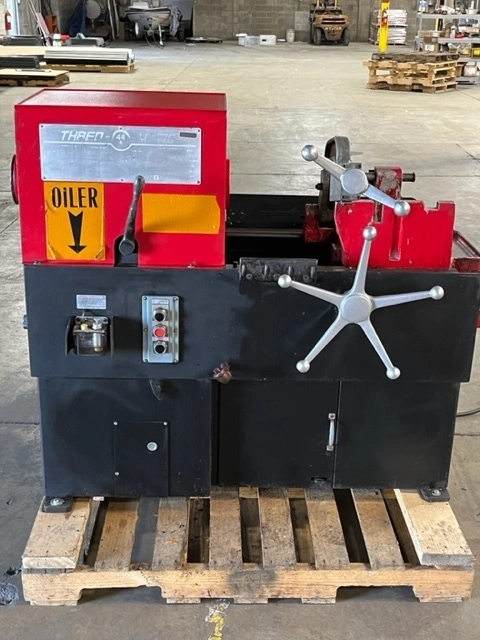

Rothenberger Collins 44A 4" Threading Machine

Rothenberger Collins 44A Top-of-the-Line 4" Production

Standard Unit with Three Dual (1/2" - 3/4") (2.1/2" - 3"), (3.1/2" - 4") and one Quad (1" - 2") Snap-O-Matic Die Heads and NPT High Speed Dies. Includes Small Die Head Adapter and 1/2" - 2" Cone Reamer Assembly

Collins 44A Heavy Duty construction includes welded steel plate frame and base.

Range: (Standard Unit)
Pipe or conduit 1/2" - 4"
Bolt or rod 19 to 76mm, 3/4" to 3"

Dimensions:
Length 60", Width 30", Height 44 1/2", height to center line of spindle 35 1/2", carriage travel 13"
2,100 lbs

Spindle Speed:
While threading 1/2" to 1" - 48 RPM
While threading 1 1/4" to 2" - 26 RPM
While threading 2 1/2" to 3" - 16 RPM
While threading 3 1/2" to 4" - 12 RPM
