Haas VF-3
Have one to sell?
ConditionUsed
1 available

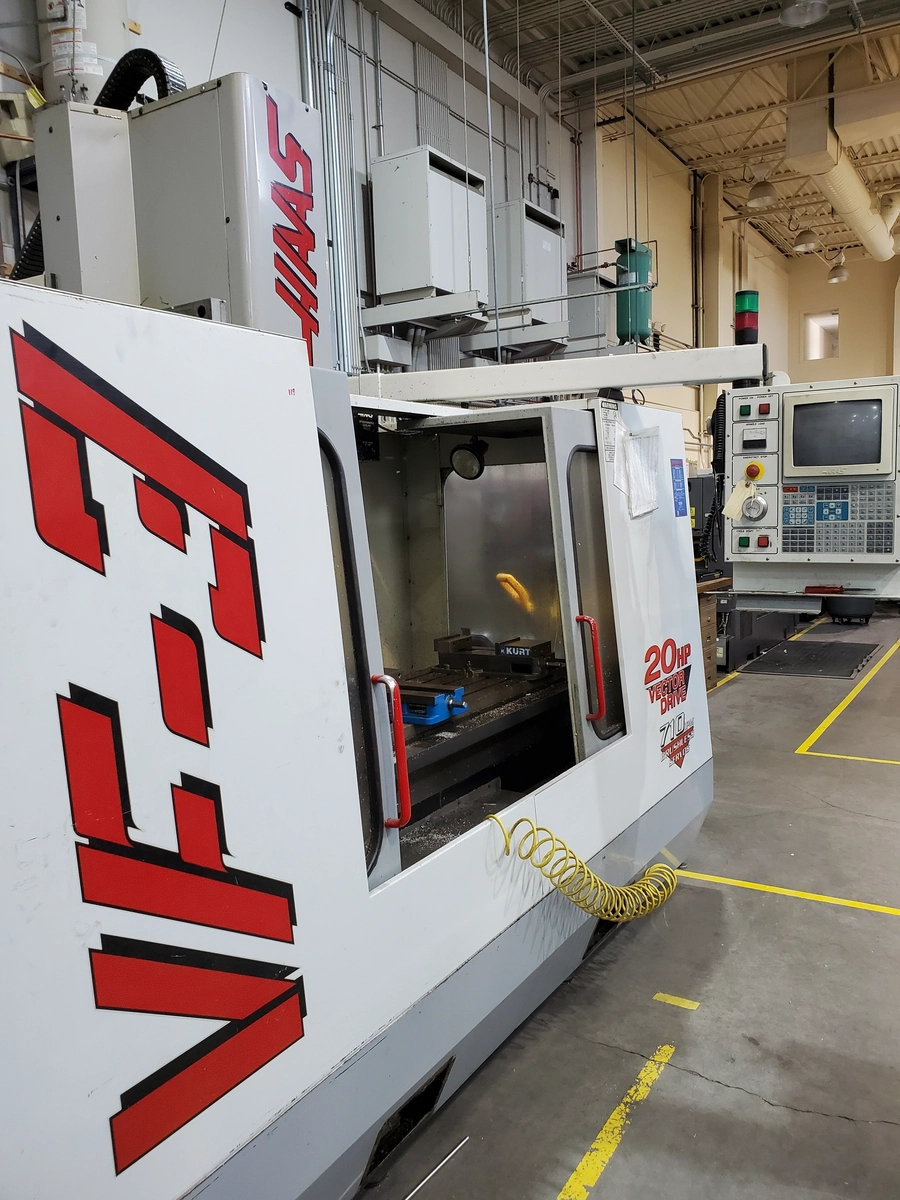

1998 Haas VF-3 with Programmable Coolant, 20 HP Vector Drive, 710 IPM Rapids
Table Size.........................48" x 18"
Table Load Capacity................1500 lbs.
Spindle Nose to Table Top..........4" - 29"
X-Axis.............................40"
Y-Axis.............................20"
Z-Axis.............................25"
Spindle Motor......................20 HP
Spindle Taper......................CAT 40
Spindle Speed0.....................7500 RPM
Number of Tools....................20
Max Tool Diameter..................3.5"
Max Tool Length....................13"
Max Tool Weight....................12 lbs.
Tool Change Time (T - T / C - C)...4.2 / 4.5 Seconds
Machine Dimensions (L x W x H).....118" x 98" x 100"
Machine Weight.....................12,500 lbs.
Haas CNC Control
Programmable Coolant
20 Station ATC
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
1998 Haas VF-3 with Programmable Coolant, 20 HP Vector Drive, 710 IPM Rapids
Imperial
| X | 40" |
| Y | 20" |
| Z | 25" |
| Power | 20 hp |
| RPM | 7,500 RPM |
| # ATC | 20 |
| Taper | CAT-40 |
| Control | CNC (Haas CNC Control) |
| Dimensions | 118" x 98" x 100" |
| Weight | 12,500 LBS |
Table Size.........................48" x 18"
Table Load Capacity................1500 lbs.
Spindle Nose to Table Top..........4" - 29"
X-Axis.............................40"
Y-Axis.............................20"
Z-Axis.............................25"
Spindle Motor......................20 HP
Spindle Taper......................CAT 40
Spindle Speed0.....................7500 RPM
Number of Tools....................20
Max Tool Diameter..................3.5"
Max Tool Length....................13"
Max Tool Weight....................12 lbs.
Tool Change Time (T - T / C - C)...4.2 / 4.5 Seconds
Machine Dimensions (L x W x H).....118" x 98" x 100"
Machine Weight.....................12,500 lbs.
Haas CNC Control
Programmable Coolant
20 Station ATC
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
