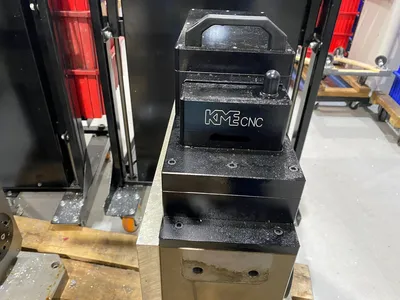

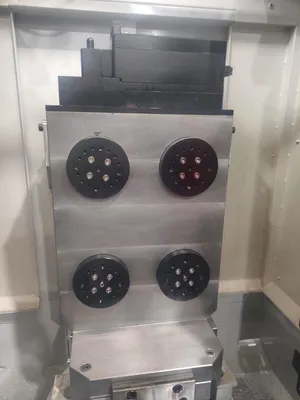

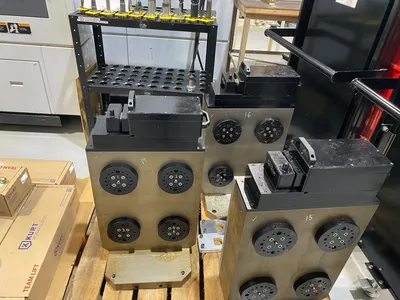

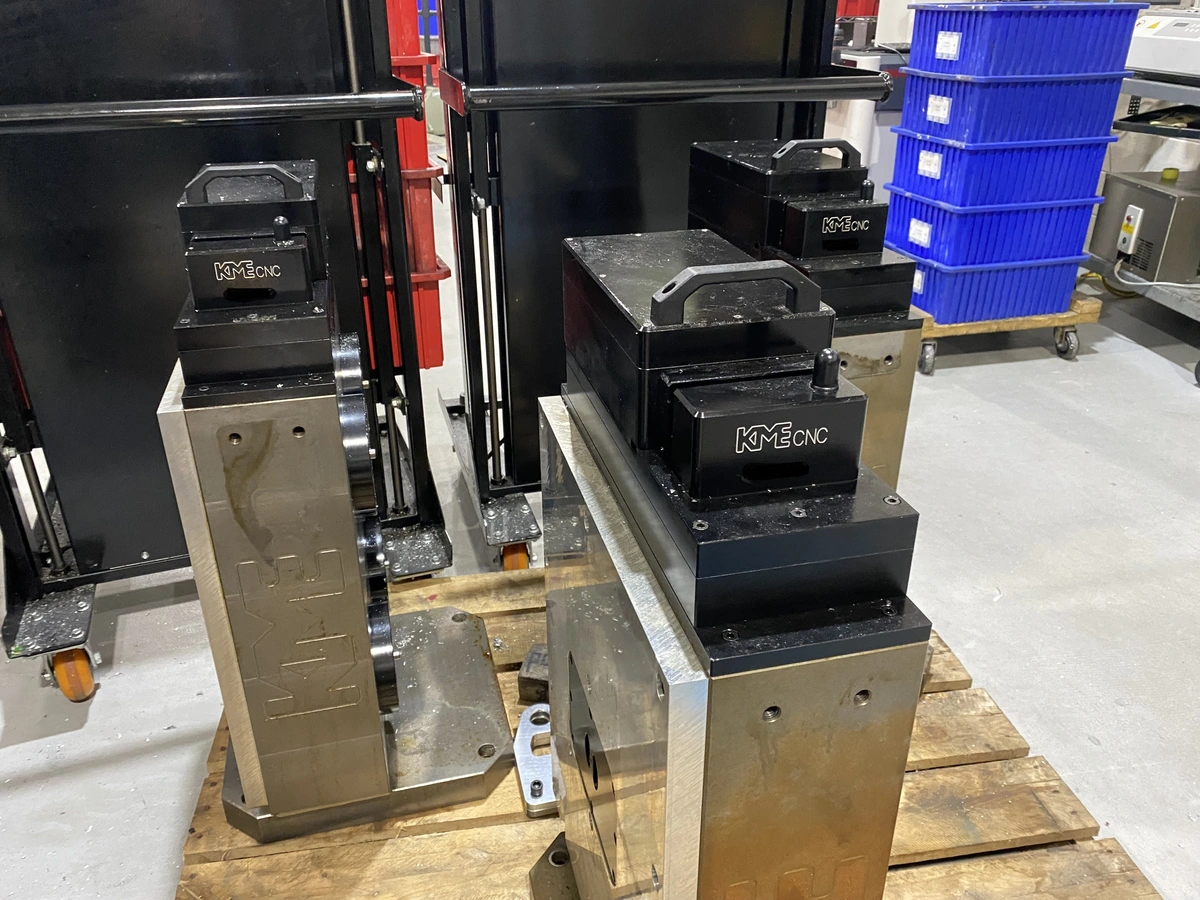

KME-TS400-4-0-RF 5-Axis Wireless Tombstone with (4) Rotary Tables

Resolution.............................0.0018º
Maximum Rotation/Step..................999.999º
Maximum Holding Torque.................300 ft-lb / 407 N-m
Rotating Torque........................45 ft-lb / 61 N-m
Side Load Torque.......................1250 ft-lb / 1627 N-m
Accuracy...............................±10 Arc Sec
Repeatability..........................±5 Arc Sec
Gear Ratio.............................100:1
Maximum Part Size......................7” (177.8mm)
Maximum Part Weight....................100 Lbs
Construction...........................Meehanite Cast Iron
Faceplate Diameter.....................180mm
Base Size..............................400mm Tombstone
Height.................................690mm
Signal.................................Single M-Code Function
Approx Weight..........................450 Lbs

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
