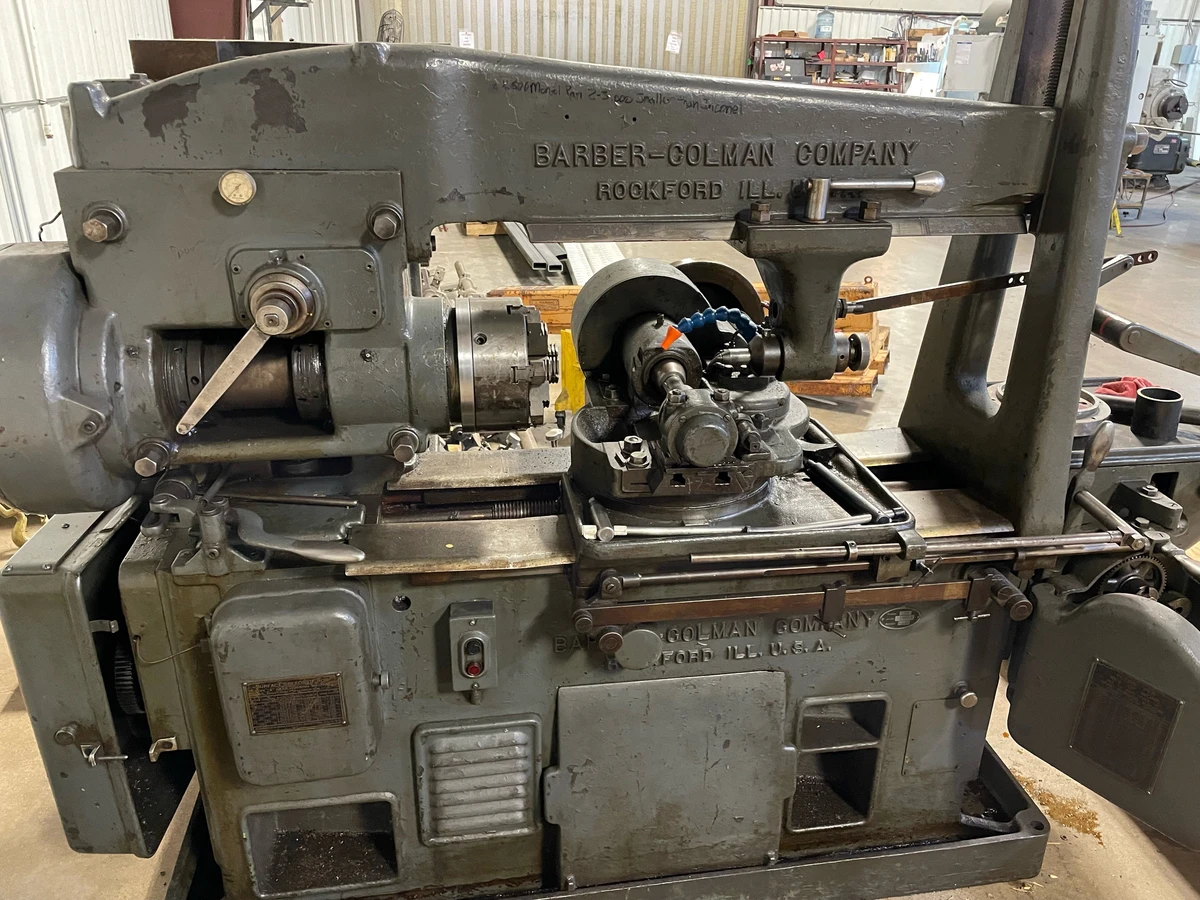

Barber Colman Type A Gear Hobbing Machine
Have one to sell?
ConditionUsed
1 available
Barber Colman Type A Gear Hobbing Machine with Double Thread Index Worm
Maximum Hob Diameter............5"
Max Swing.......................16"
Spindle Bore Diameter...........3-1/8"
Maximum Hob Speed...............425 IPR
Spindle Speeds (8)..............60 to 240 RPM
Face Diameter...................16"
Main Unit Dimensions............88" x 35" x 70"
Main Unit Approx Weight.........5000 LBS
Double Thread Index Worm
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Barber Colman Type A Gear Hobbing Machine with Double Thread Index Worm
Imperial
| Max Dia. Gear | 5" |
| Horz/Vert | Horz |
| Weight | 5000 Lbs |
Maximum Hob Diameter............5"
Max Swing.......................16"
Spindle Bore Diameter...........3-1/8"
Maximum Hob Speed...............425 IPR
Spindle Speeds (8)..............60 to 240 RPM
Face Diameter...................16"
Main Unit Dimensions............88" x 35" x 70"
Main Unit Approx Weight.........5000 LBS
Double Thread Index Worm
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
