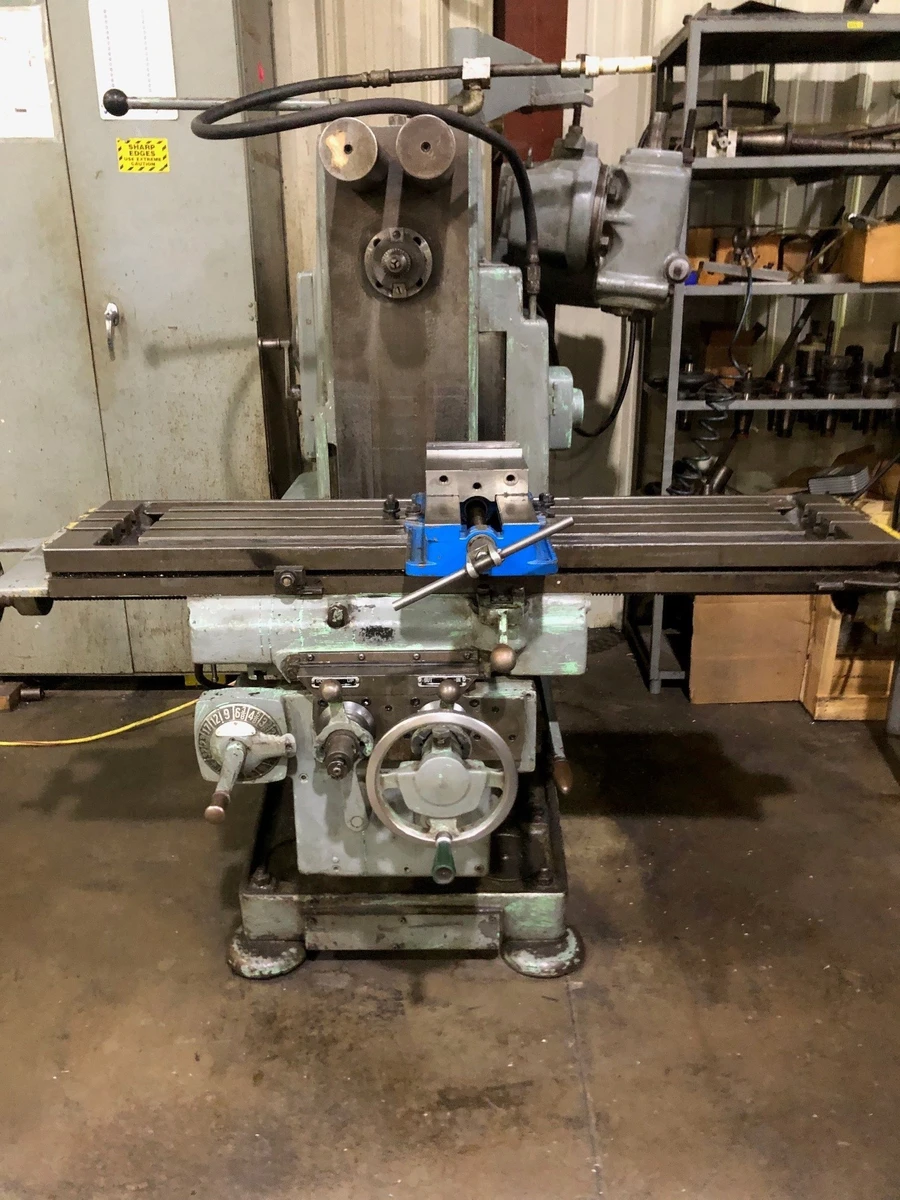

KEARNEY & TRECKER MODEL 205 SA HORIZONTAL MILL

MODEL ......................... 205 SA
WORKING SURFACE OF TABLE ...... 50" X 12"
LONGITUDINAL TABLE TRAVEL ..... 28"
CROSS TABLE TRAVEL ............ 10"
VERTICAL TRAVEL OF KNEE ....... 18"
SPINDLE SPEEDS ................ (16) 25 TO 1500 RPM
SPINDLE NOSE .................. NO. 50
FEEDS ......................... (16) 1/4 TO 32 IPM
RAPID TRAVERSE RATE ........... 150 IPM
COOLANT ....................... YES
UNIVERSAL VERTICAL HEAD ....... YES
MOTOR ......................... 5 HORSEPOWER
APPROXIMATE DIMENSIONS ........ 6' X 6' X 6'
MACHINE WEIGHT ................ 4,000 LBS
