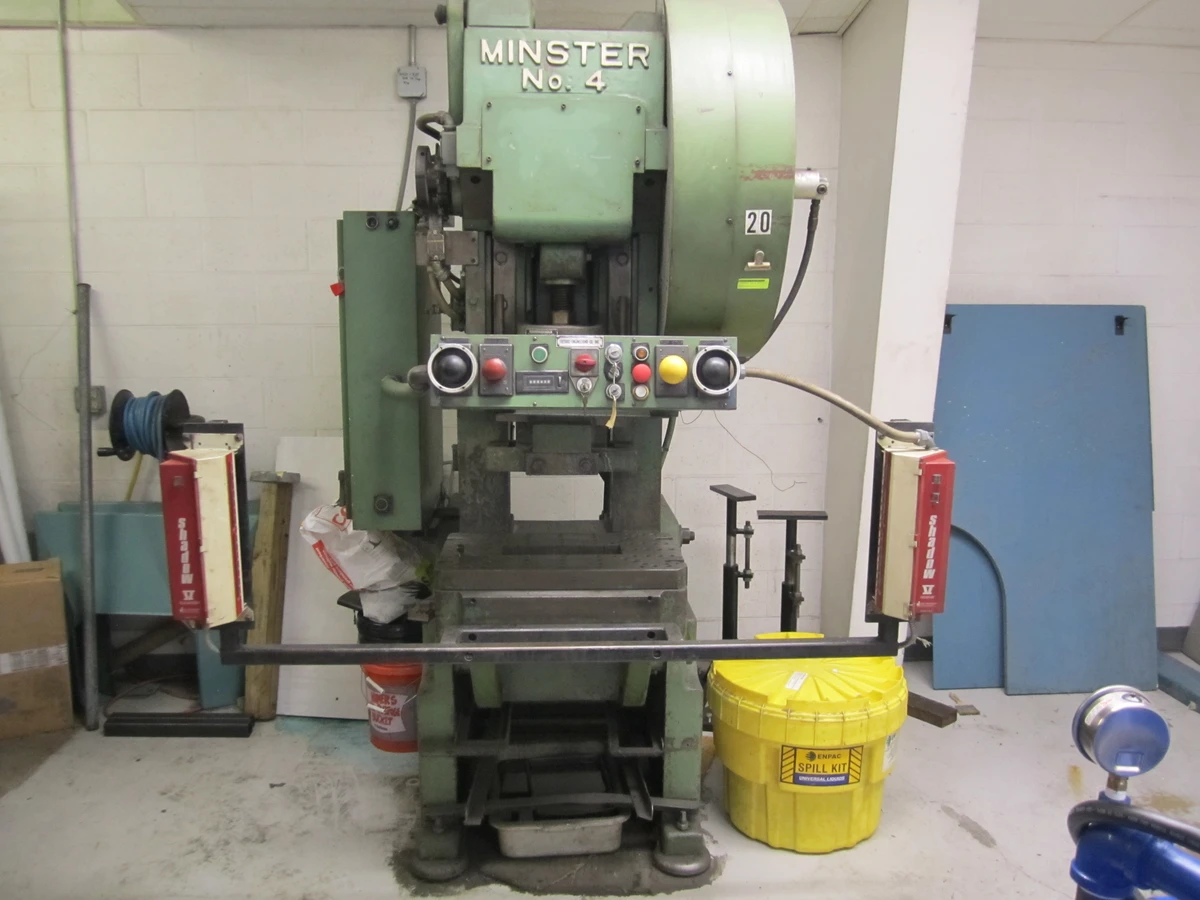

Minster #4 OBI-4-24-15 Flywheel Type Punch Press
Have one to sell?
ConditionUsed
1 available
Minster #4 OBI-4-24-15 Flywheel Type Punch Press - 2.5" Stroke, 10" Shut Height, 32 Ton, 24" x 15" Bed Size, Shadow V Light Curtain.
Press Type..........................Flywheel
Capacity at Distance Off Bottom.....32 Tons
Bed Area............................24" x 15"
Speed...............................200 SPM
Stroke of Slide.....................2.5"
Maximum Shutheight Adjustment.......2.25"
Shutheight to Bed...................10"
Bolster Thickness...................2"
Electric Power......................440V/3PH/60Hz
Clutch Control Voltage..............110V/1PH/60Hz
Lubrication System..................Recirculating
Clutch Type.........................24-CFC
Clutch Air Consumption..............118.2 Cubic Inches
Drive Motor.........................5 HP, 1800 RPM
Press Dimensions....................38" x 58" x 87"
Machine Weight......................4,100 LBS
Shadow V Light Curtain
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
