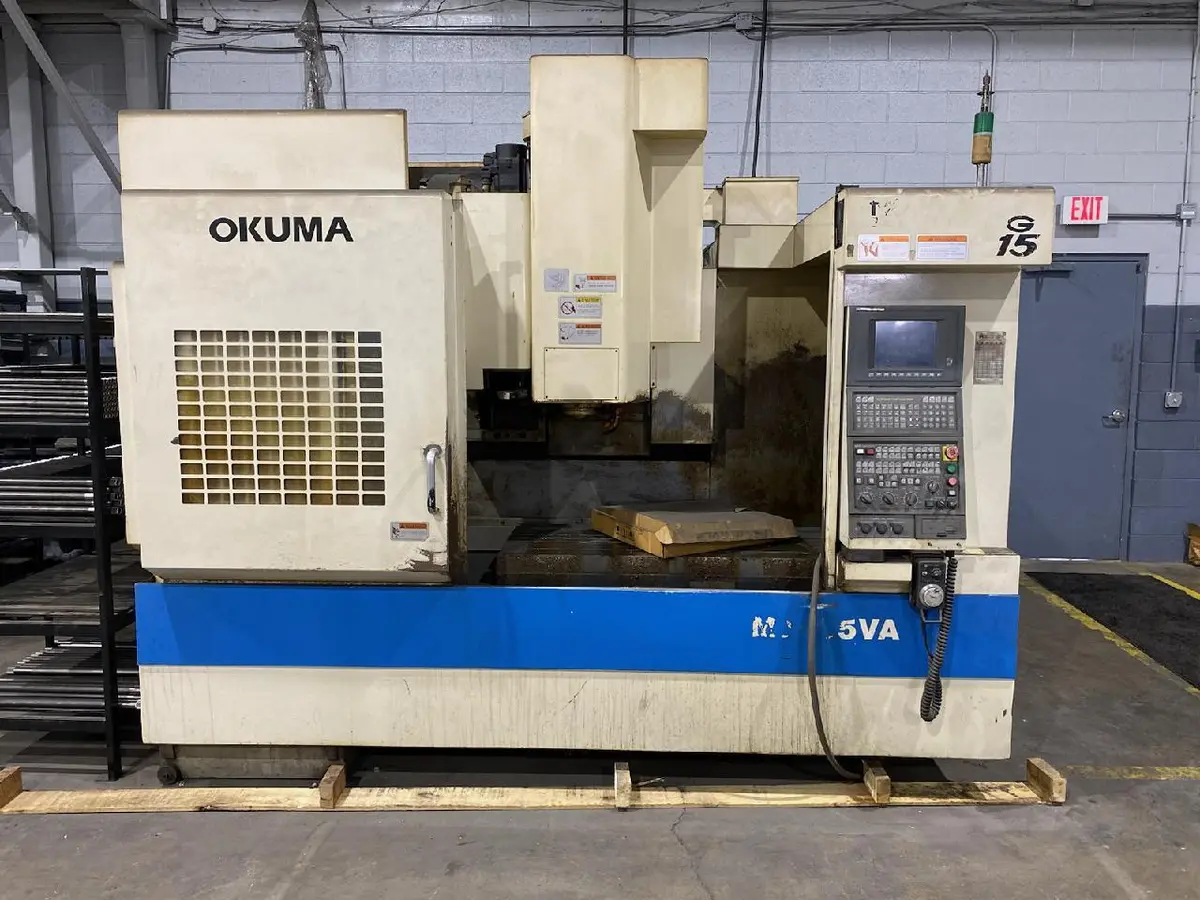

Okuma MX-55VA

Table Working Surface............................. 51.18" x 22.05"
Table Load Capacity............................... 1,500 LBS
Longitudinal Travel (X-Axis)...................... 41.3"
Cross Travel (Y-Axis)............................. 22"
Vertical Travel (Z-Axis).......................... 17.72"
Rapid Traverse Rate (X and Y Axes)................ 1181 IPM
Rapid Traverse Rate (Z Axis)...................... 945 IPM
Spindle Face to Table Surface..................... 14" - 31.8"
Tool Storage Capacity............................. 32
Spindle Speeds Range.............................. 50-7000 RPM
Spindle Taper..................................... CAT-40
Approximate Machine Dimensions.................... 114" x 114"
Approximate Machine Height........................ 104"
Approximate Machine Weight........................ 15,000 LBS
