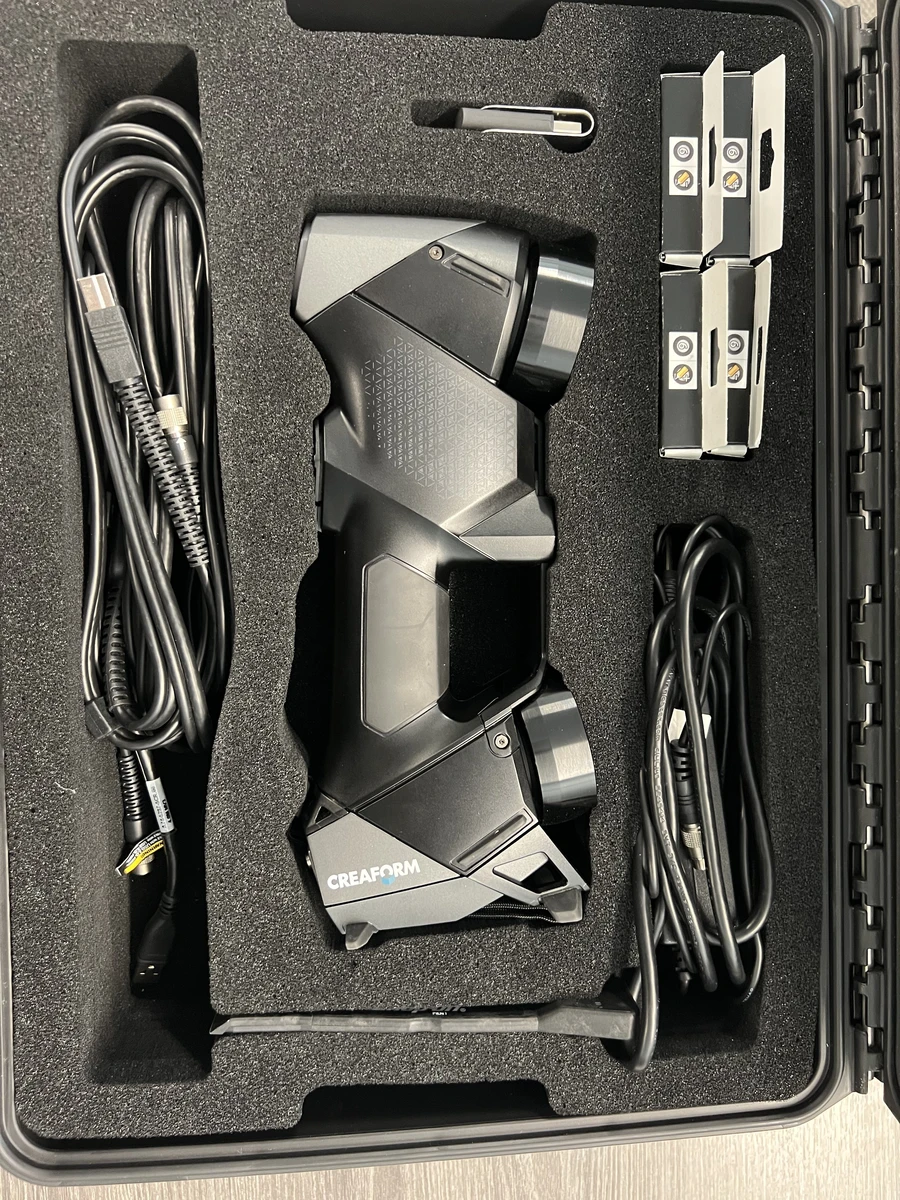

HandySCAN BLACK - Handheld Self-Positioning Blue laser Scanner

DESCRIPTION:
The HandySCAN 3D™ line-up is the reference in portable metrology‑grade 3D scanner.
Optimized to meet the needs of design, manufacturing and metrology professionals.
the BLACK Series provides the most effective and reliable way to acquire accurate
3D measurements of physical objects anywhere.

This fast and versatile patented handheld 3D scanner is easy-to-use and generates
highly accurate and repeatable results—even in difficult environments
and with complex surfaces.

SPECIFICATIONS:
Accuracy........................0.035 mm (0.0014 in)
Volumetric Accuracy.............0.020 + 0.060 mm/m (0.0008 in + 0.0007 in/ft)
Measurement Resolution..........0.025 mm (0.0009 in)
Mesh Resolution.................0.100 mm (0.0039 in)
Measurement Rate................800,000 measurements/s
Light Source....................7 blue laser crosses
Laser Class.....................2M (eye-safe)
Scanning Area...................310 x 350 mm (12.2 x 13.8 in)
Stand-off Distance..............300 mm (11.8 in)
Depth of Field..................250 mm (9.8 in)
Reliable Acceptance Test........Based on VDI/VDE 2634 part 3 standard ISO 17025 accredited laboratory
Part Size Range (Recommended)...0.05 – 4 m (0.15 –13 ft)
Operating Temperature Range.....5-40 °C (41-104 °F)
Operating Humidity Range........(non-condensing) 10-90%
Dimensions (L x W x H)..........79 x 142 x 288 mm (3.1 x 5.6 x 11.3 in)
Weight..........................2.1 lbs
