Kia KH63GI Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available

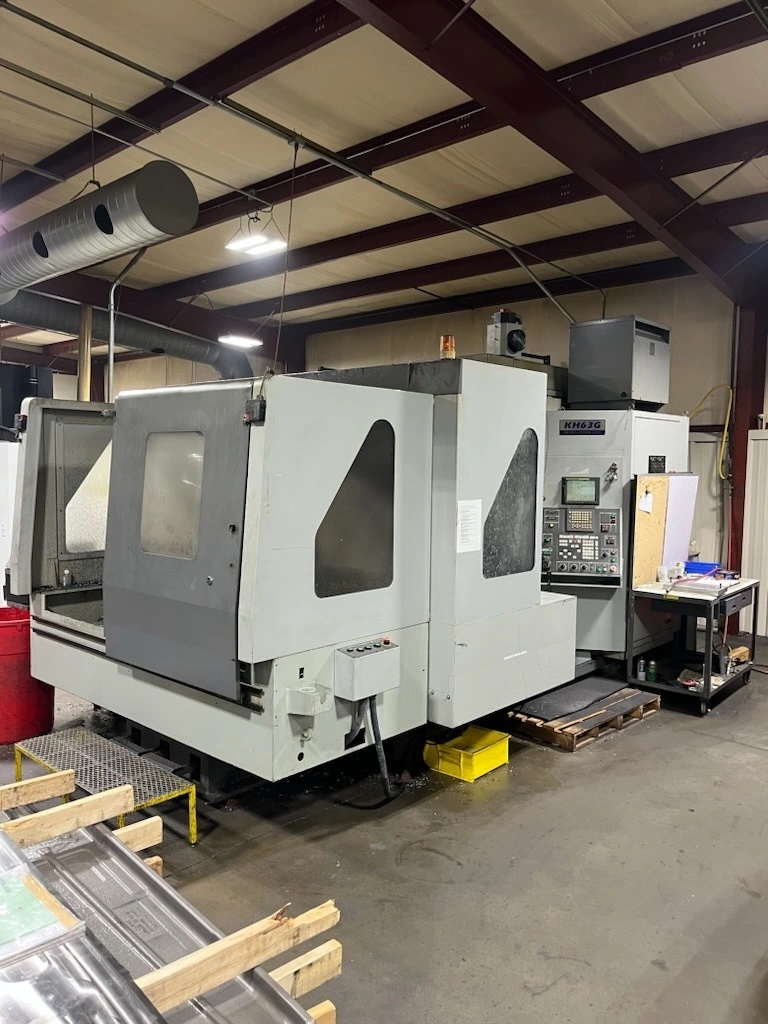

2010 Kia KH63G Horizontal Machining Center - Fanuc 18i-MB Control, Full 4th Axis, 8,000 RPM, CAT-50 Spindle, 60 ATC, Through Spindle Coolant.
Pallet Size.......................24.8" x 24.8""
Max Pallet Load...................2,204 LBS
Pallet Indexing...................0.001"
X-Axis Travel.....................37.4"
Y-Axis Travel.....................32.5"
Z-Axis Travel.....................29.9"
Spindle Motor.....................30 HP
Spindle Taper.....................CAT-50
Spindle Speed.....................8,000 RPM
Tool Changer......................60 ATC
Machine Dimensions................216" x 132" x 126"
Print Dimensions..................184"L x 110"W x 105" With Work Light Removed from Top
Chip Conveyor & Coolant Tank......116" x 42" x 114"
Weight............................30,100 LBS
Fanuc Series 18i-MB Control
8,000 RPM CAT-50 Spindle
Full 4th Axis
60 Tools
Thru-Spindle Coolant
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
